Cut Collection

$0.00

The Cut Collection features 40 unique designs crafted from our American-made EcoCore, AME Wood Grain, and EcoCore Colours. Each design can be customized with contrasting infills to create a fully solid screen or left open to let light and space through the pattern, offering versatile options for both aesthetics and functionality.

The Cut Collection features 40 unique designs crafted from our American-made EcoCore, AME Wood Grain, and EcoCore Colours. Each design can be customized with contrasting infills to create a fully solid screen or left open to let light and space through the pattern, offering versatile options for both aesthetics and functionality.

Sustainability: (AME EcoCore)

  • MAS Certified Green

  • LEED v4.1 ID+C, BD+C

  • CHPS 2019 Core Criteria 3.0 EQ C6.1.6

Fire Rating

  • All panel components meet or exceed class “A” requirements as determined by ASTM E-84 tunnel test

Performance

NRC Rating ASTM C423

(Mounting Method Type A)

0.5” AME EcoCore: 0.45

1” AME EcoCore: 0.75

2" AME EcoCore: 1.10

0.5" ECC EcoCore: 0.45

Country of Origin:

American-Made EcoCore: 100% Manufactured and Assembled in the US.

ECC EcoCore: 100% Assembled in the US.

Warranty:

AME: All products are warranted against workmanship and manufacturing defects for five (5) years from date of purchase.

All products are warranted against workmanship and manufacturing defects for two (2) years from date of purchase.

Specifications

Material:

  • American-Made EcoCore: 100% Polyester

    (55% PET-Recycled Fiber, 45% PET-Virgin Fiber)

  • ECC EcoCore Colours: 100% Polyester

Standard Screen Sizes:

  • 48" x 120” in American-Made EcoCore

  • 48 x 108” in ECC EcoCore Colours

Thickness:

  • American-Made EcoCore

    • 1/2” (0.50”/12.5mm) - 11 pcf

    • 1” (1”/25mm) - 7 pcf

    • 2" (2"/50.8 mm) 4.7 - 5.0 PCF

  • ECC EcoCore

    • 1/2" (0.47/12mm) - 12 pcf

Mounting Method:

Wall Applications: Common installation methods include construction adhesive with finish nails, mechanical Z-Clips and Z-bars, Velcro, and concealed edge clips.

Suspended Applications: C-Channels are available for 1/2" and 1" screens. Use the Gripper System for fixed installations. For movable screens, install with trolleys.

*Each method has different requirements for fastening the hardware to the panel and will be determined before production of panels begin.

Field Cutting

Panels can be cut using standard utility knives with sharp blades. Power saws equipped with negative rake blades can also be used.

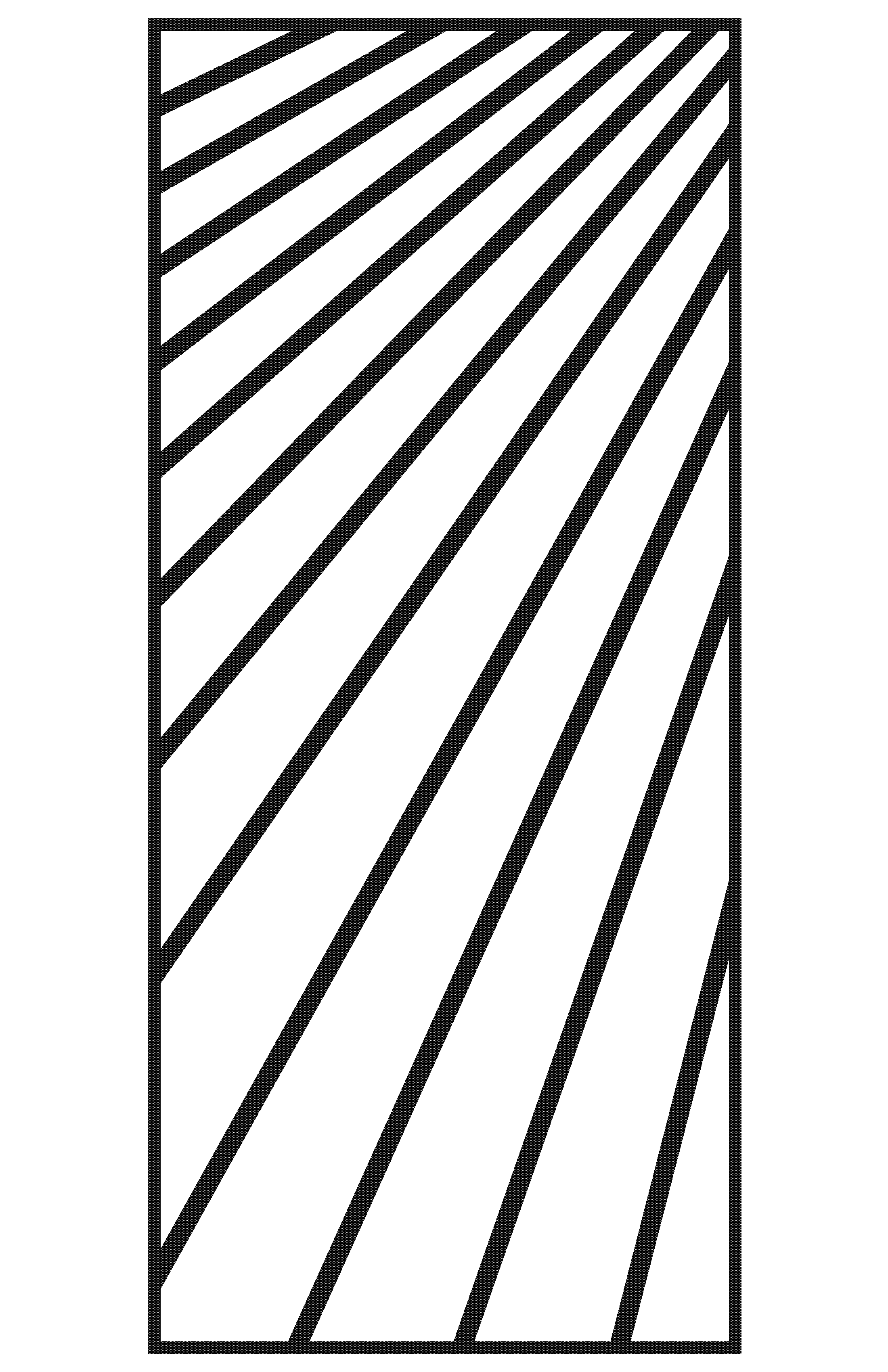

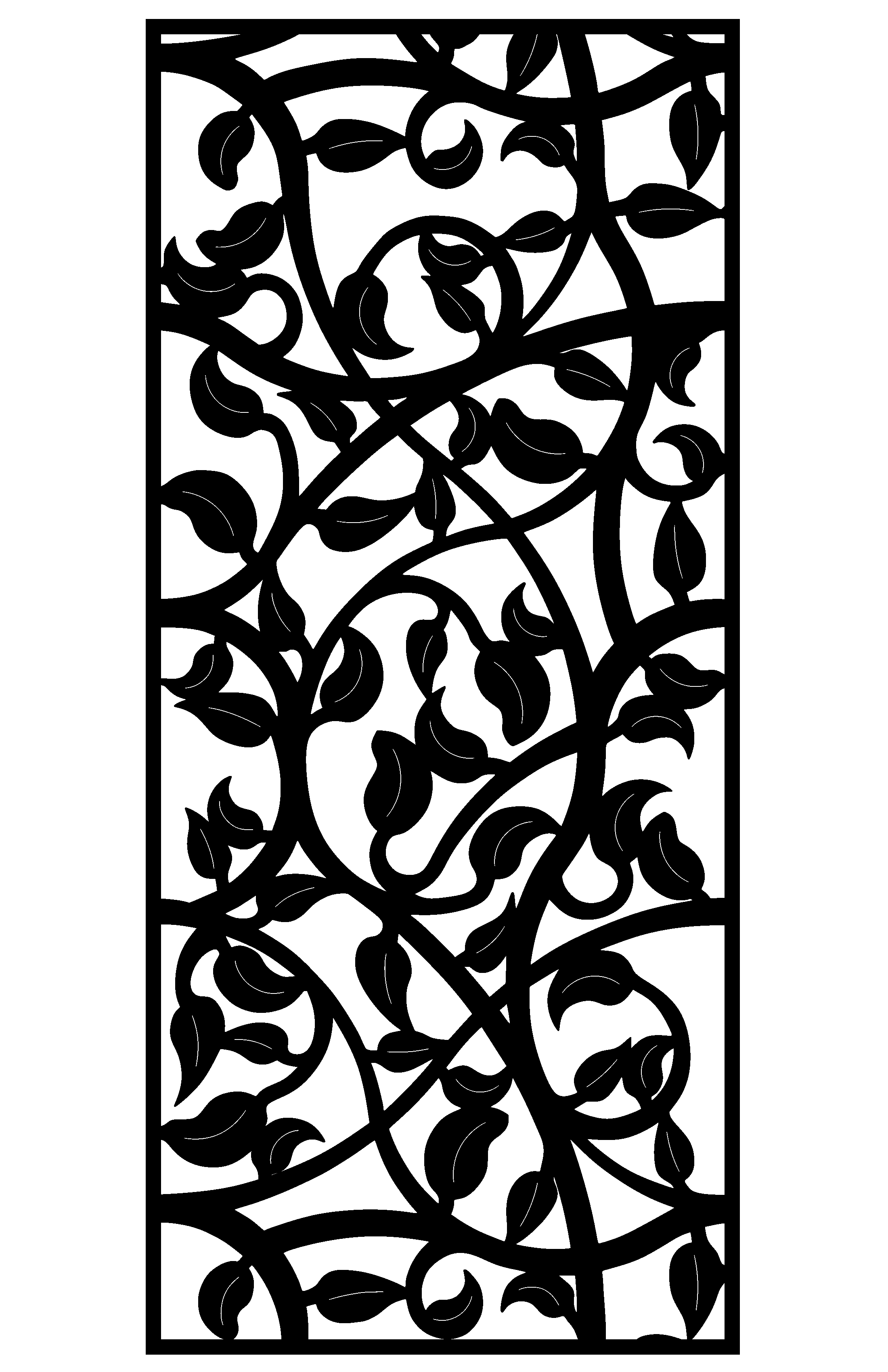

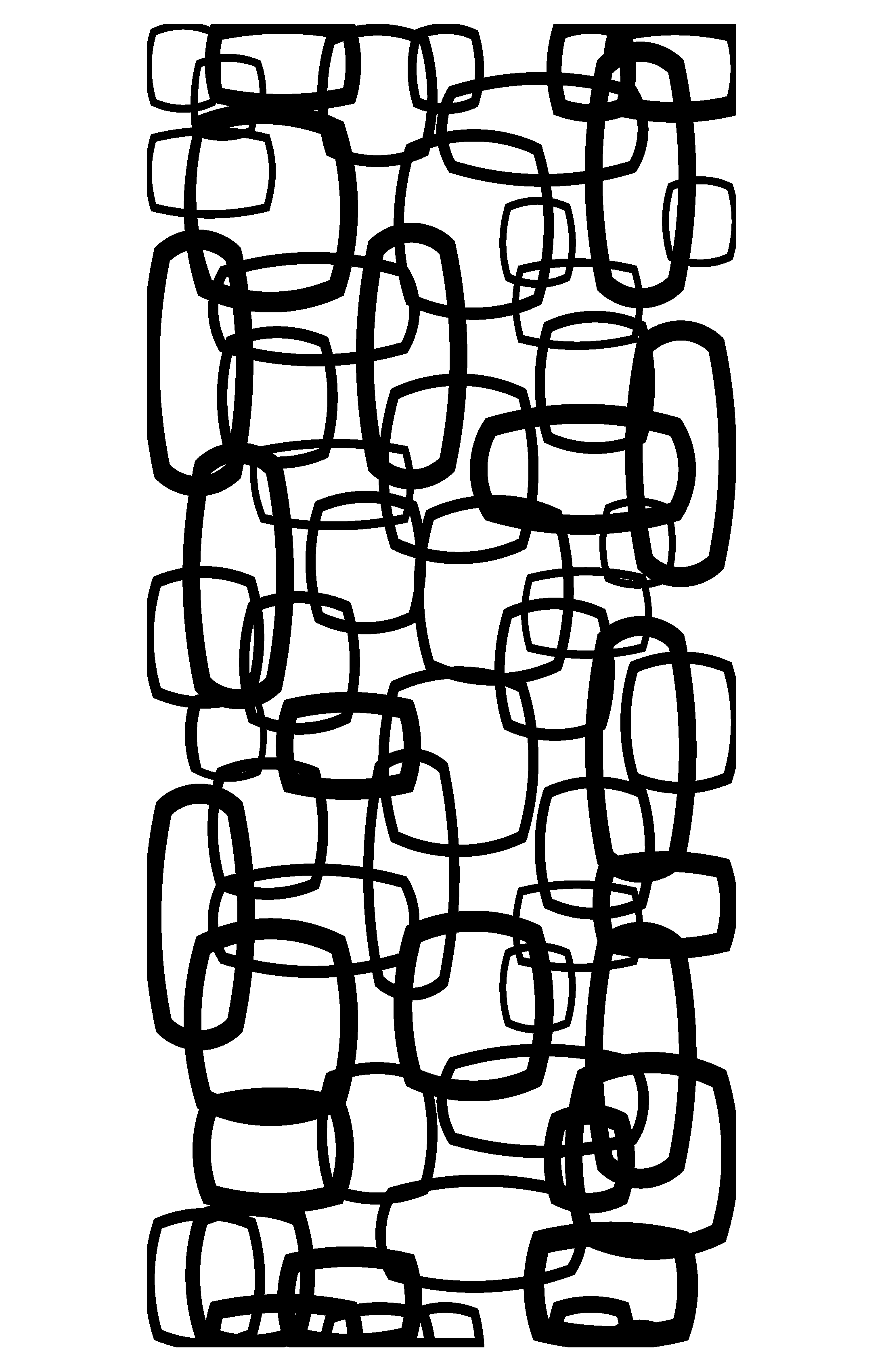

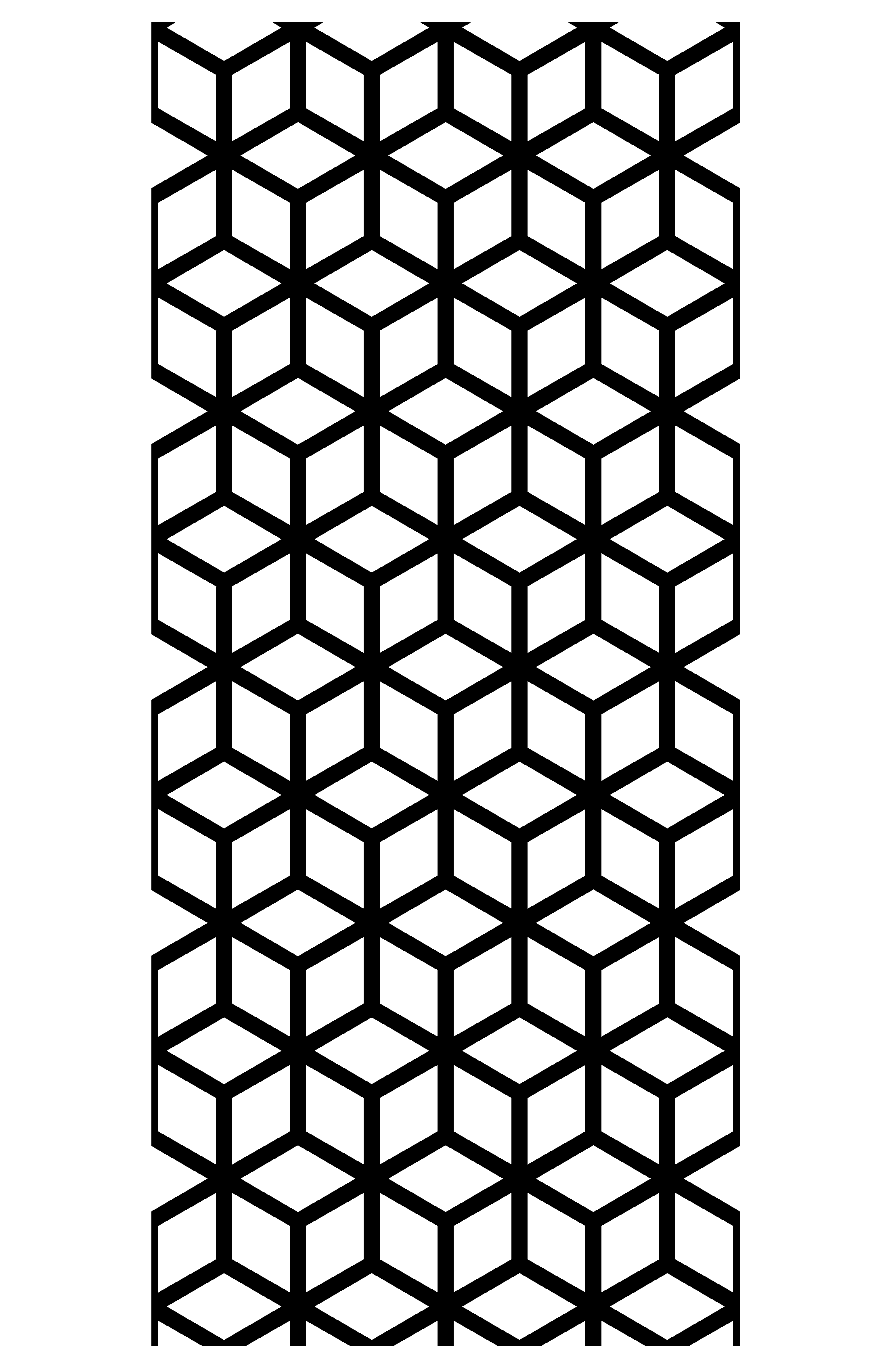

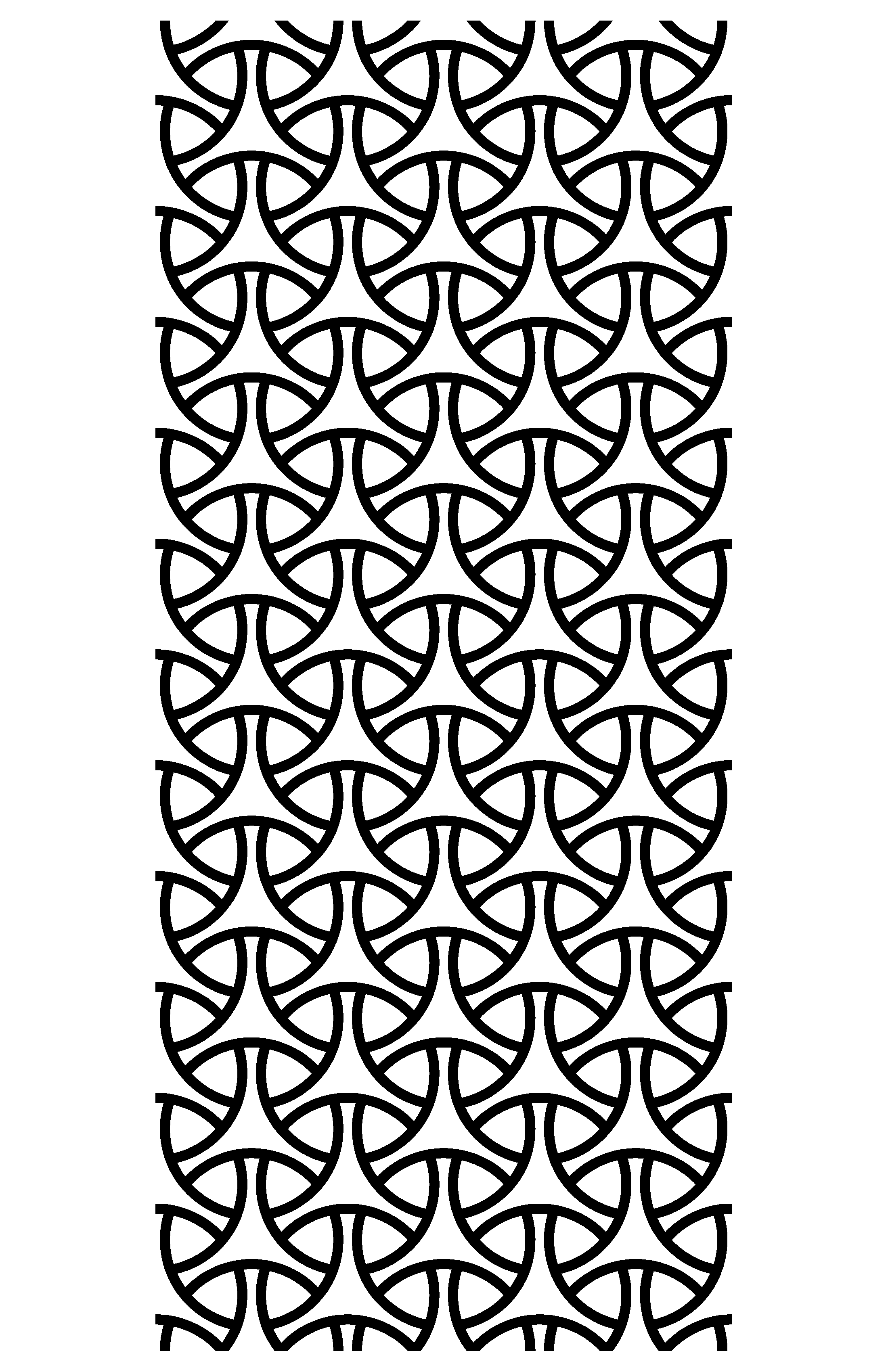

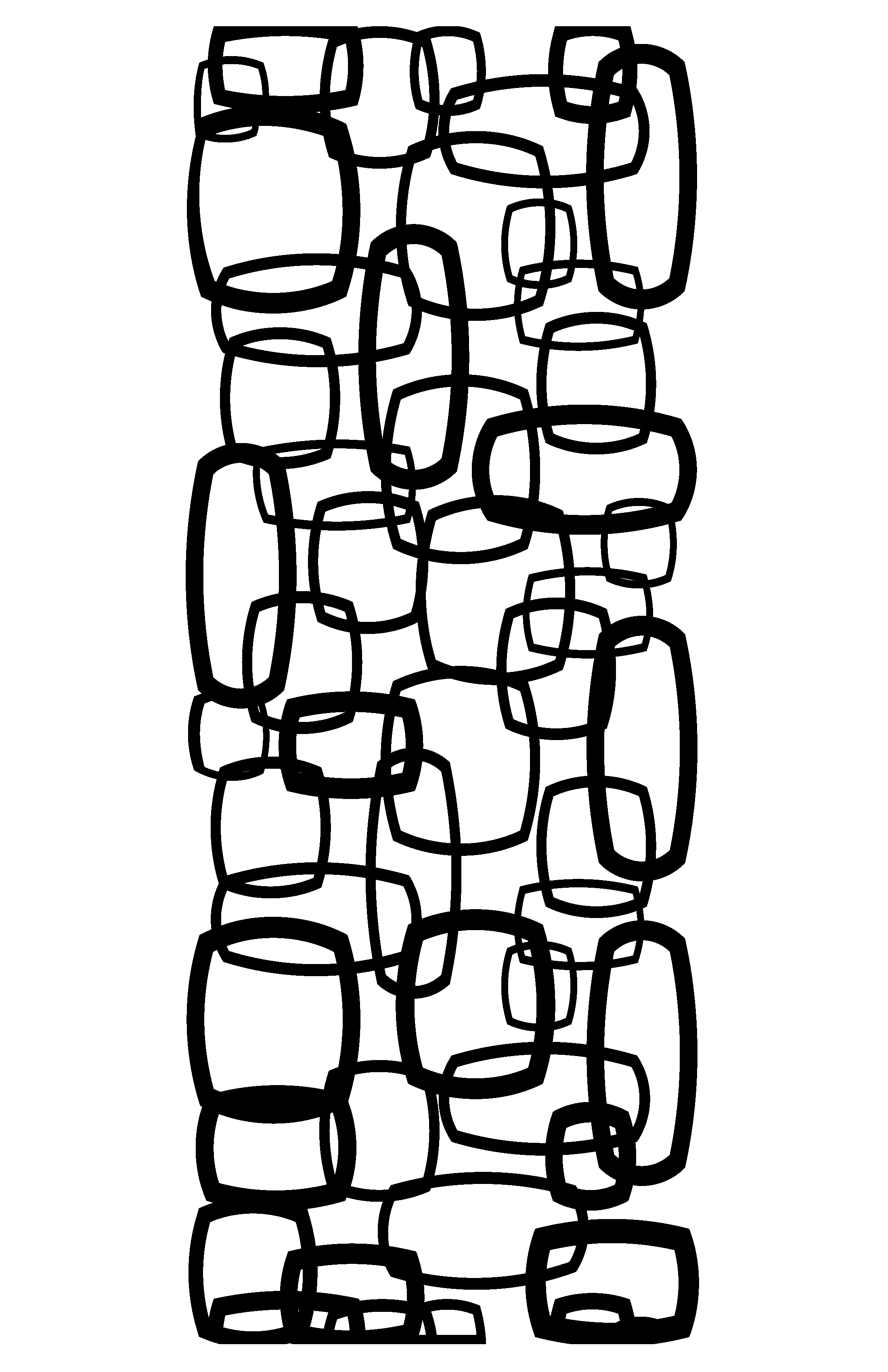

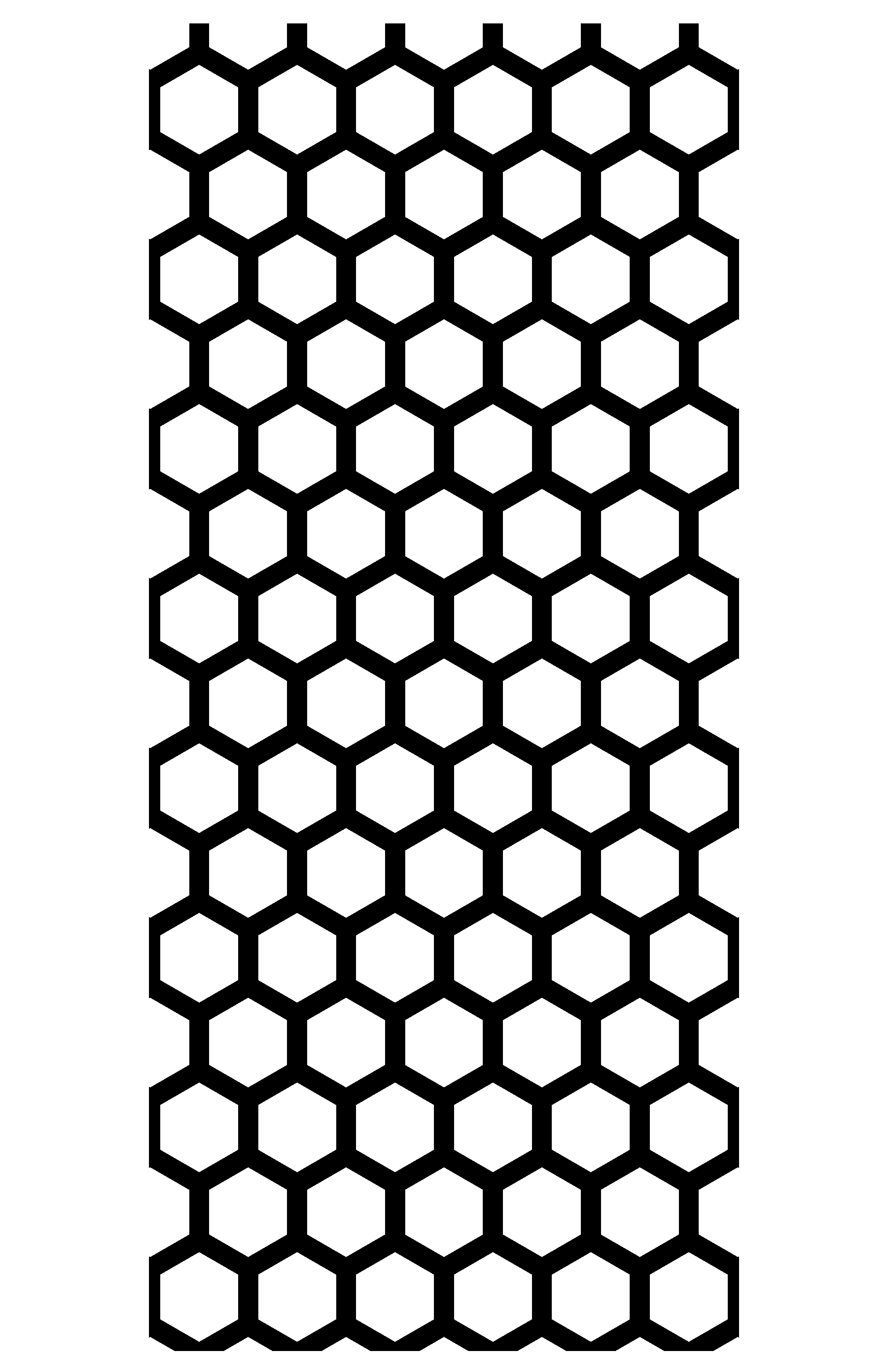

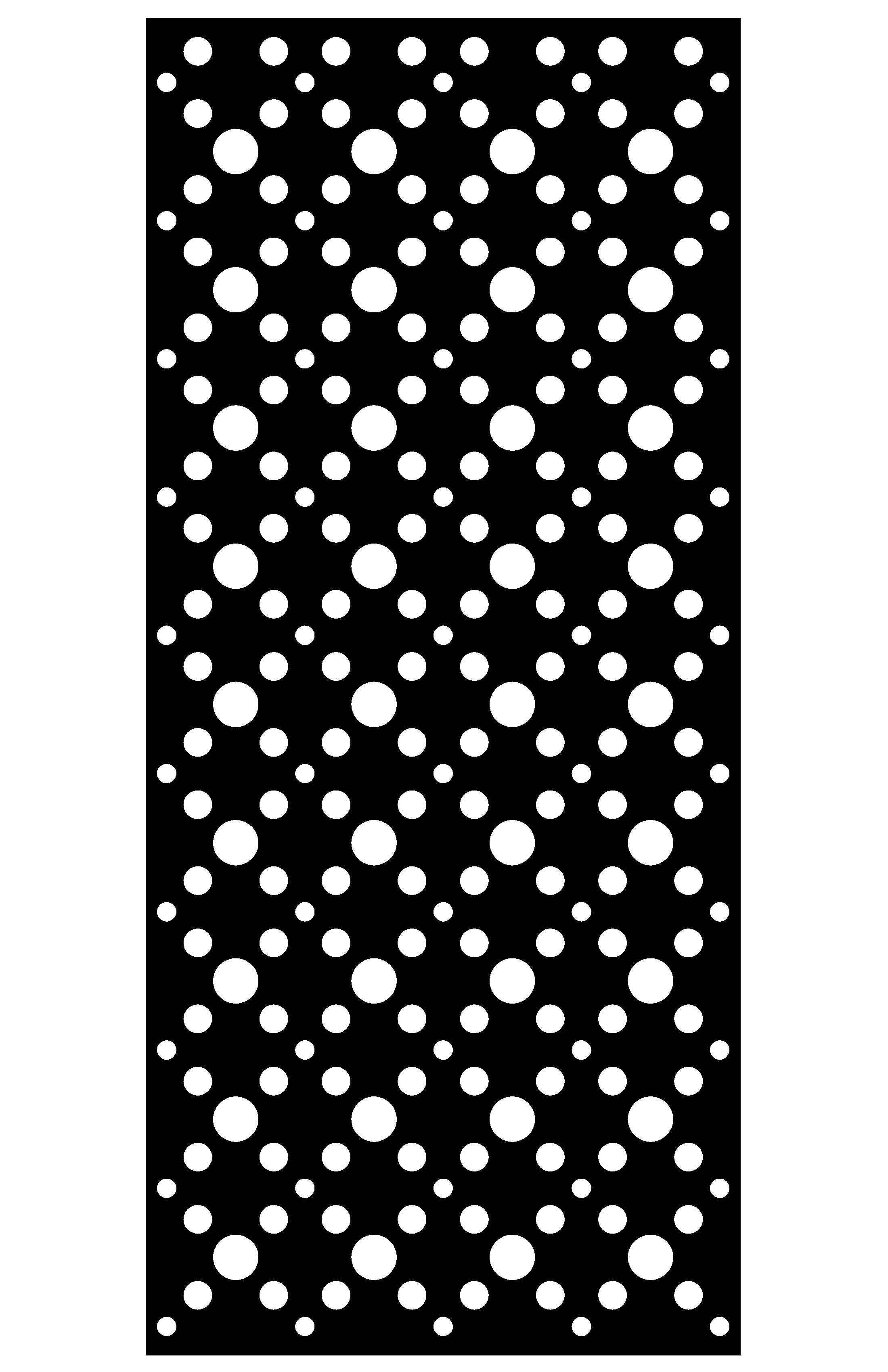

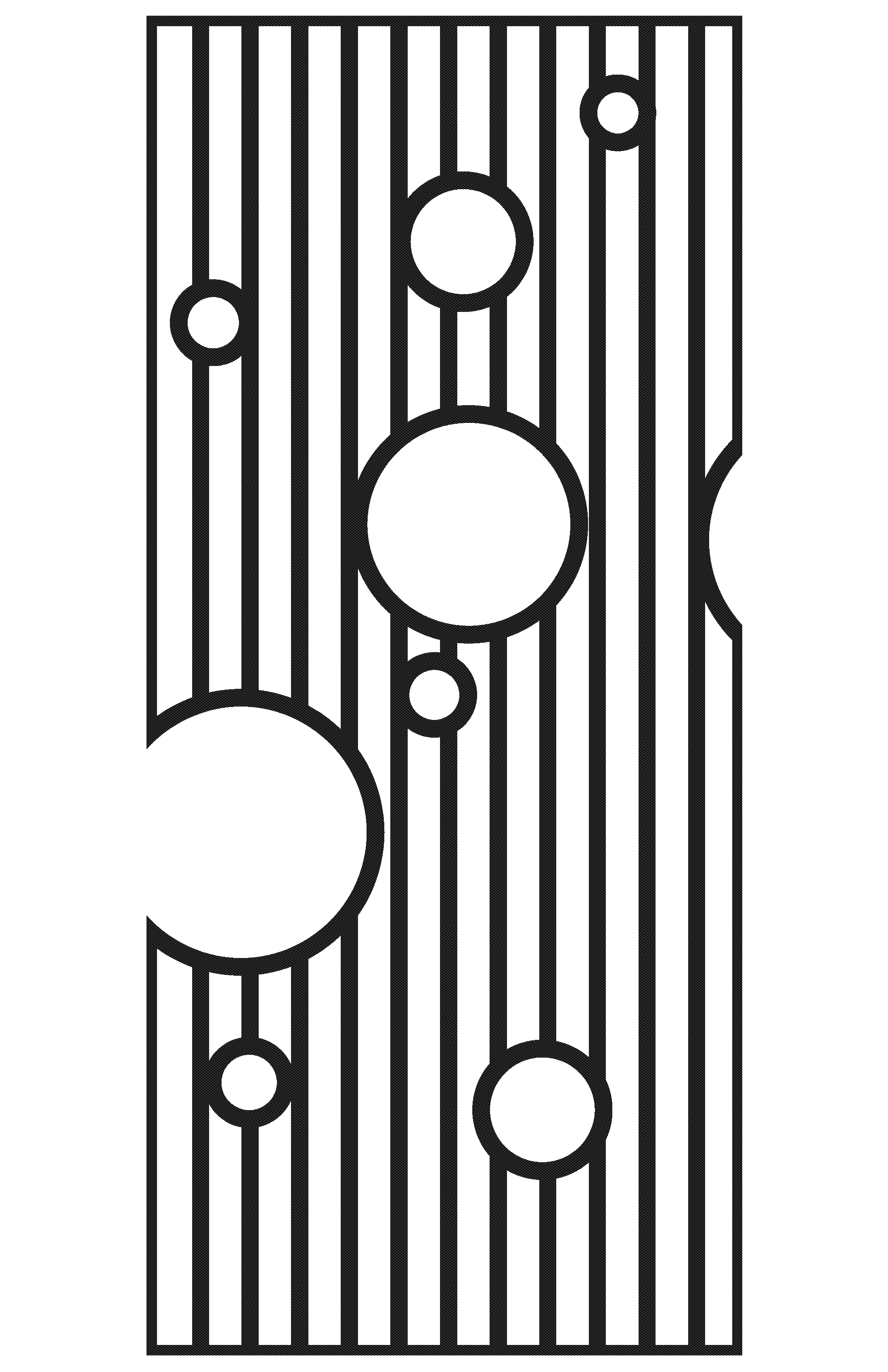

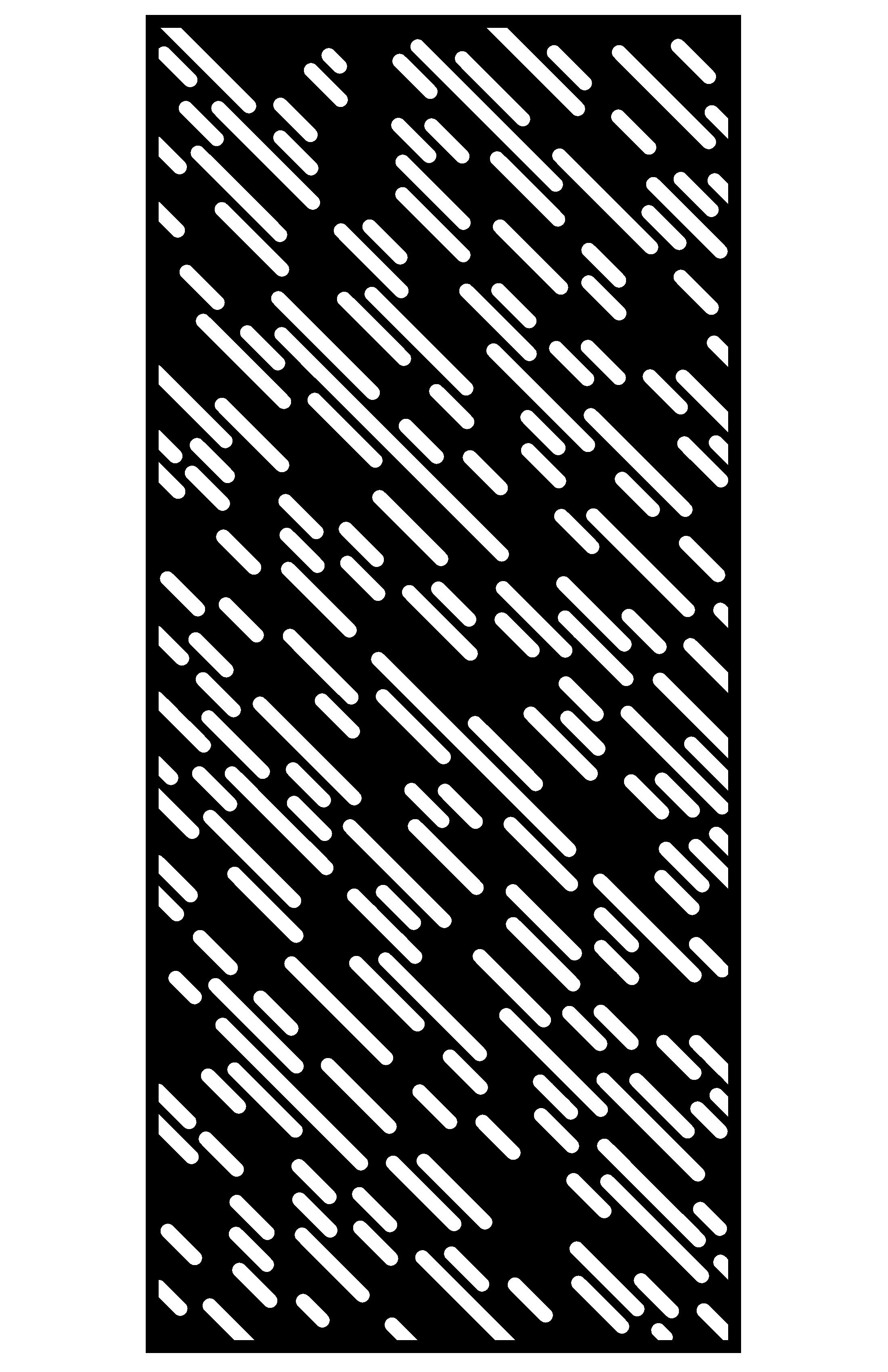

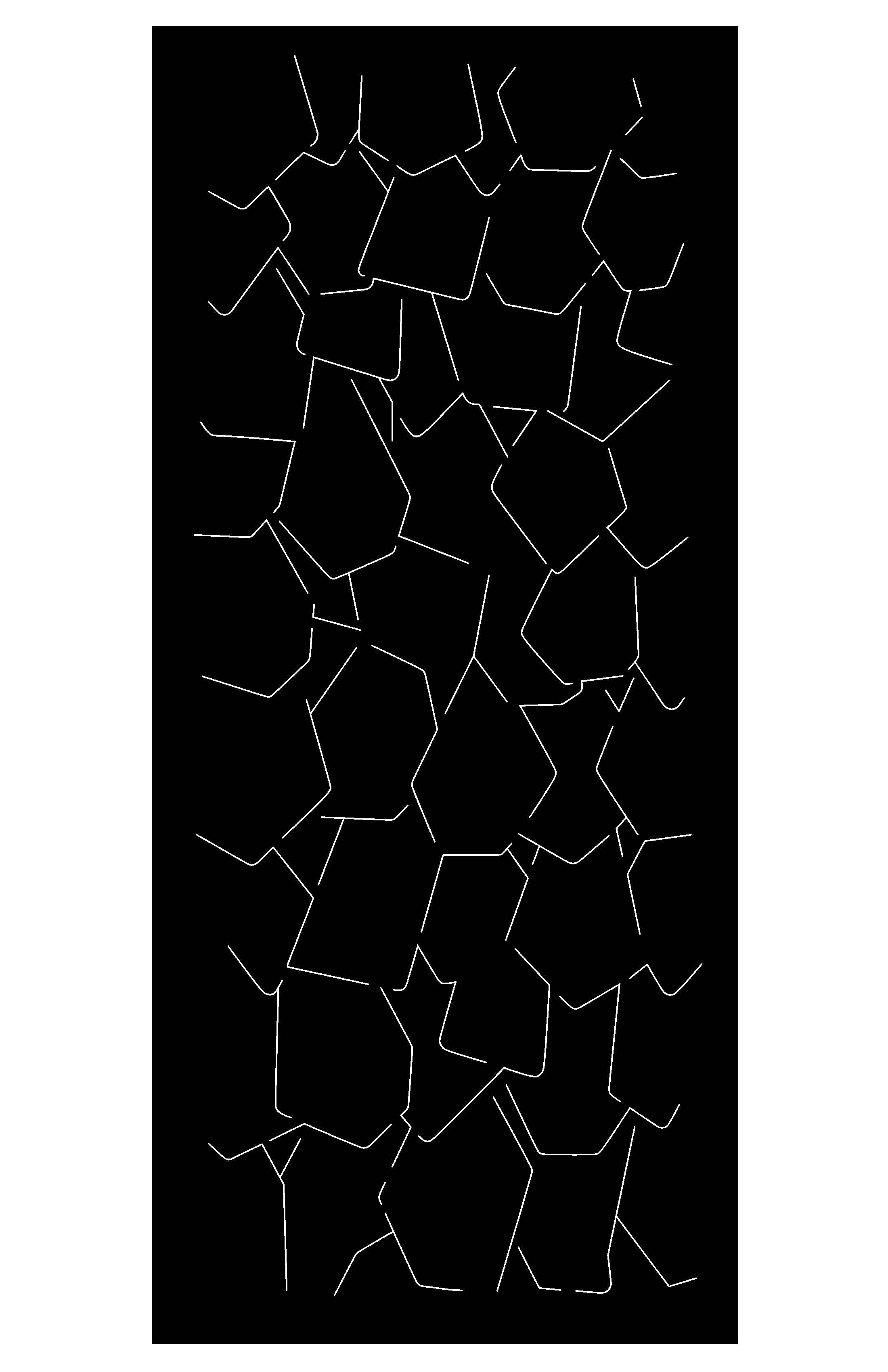

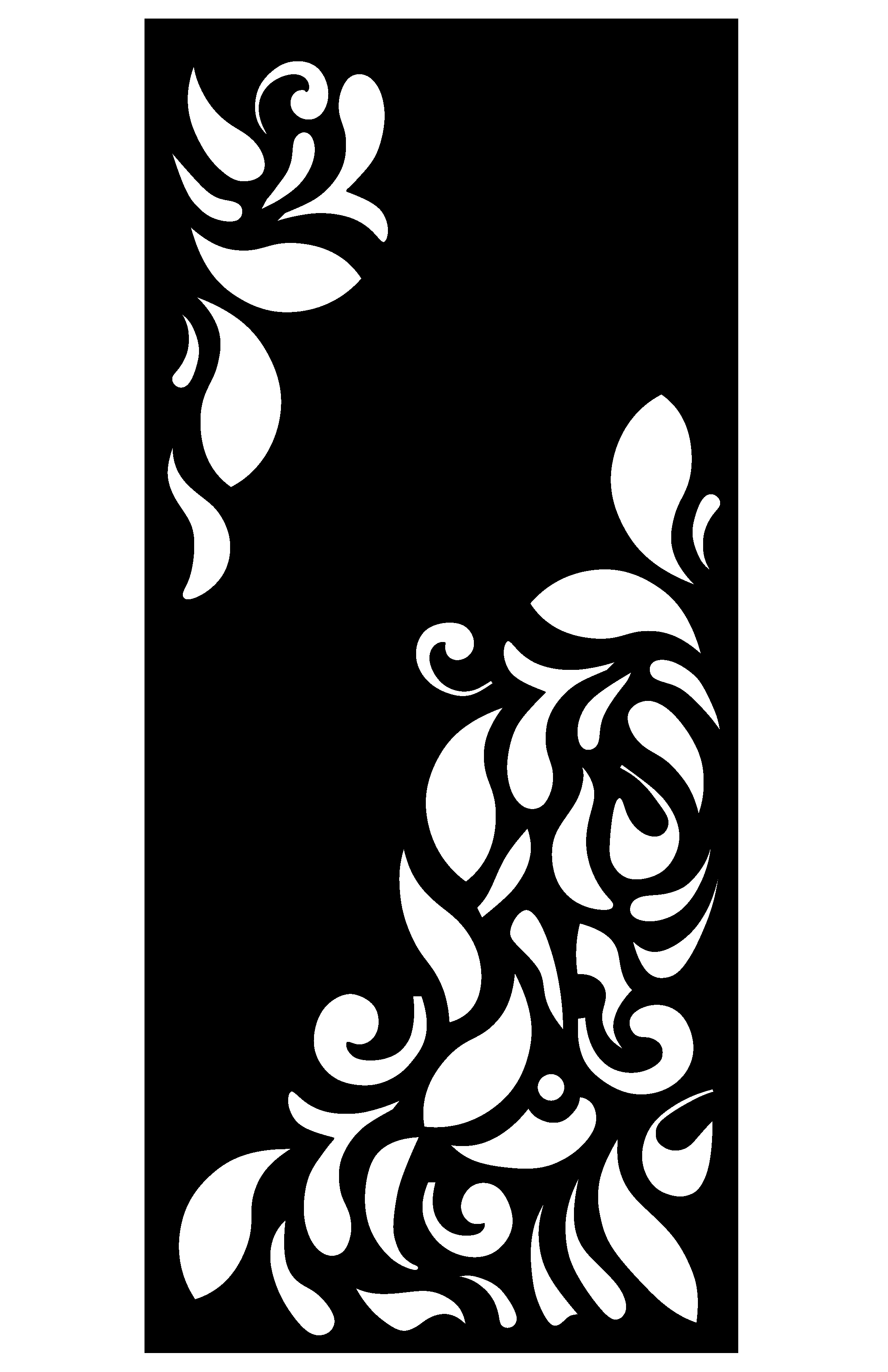

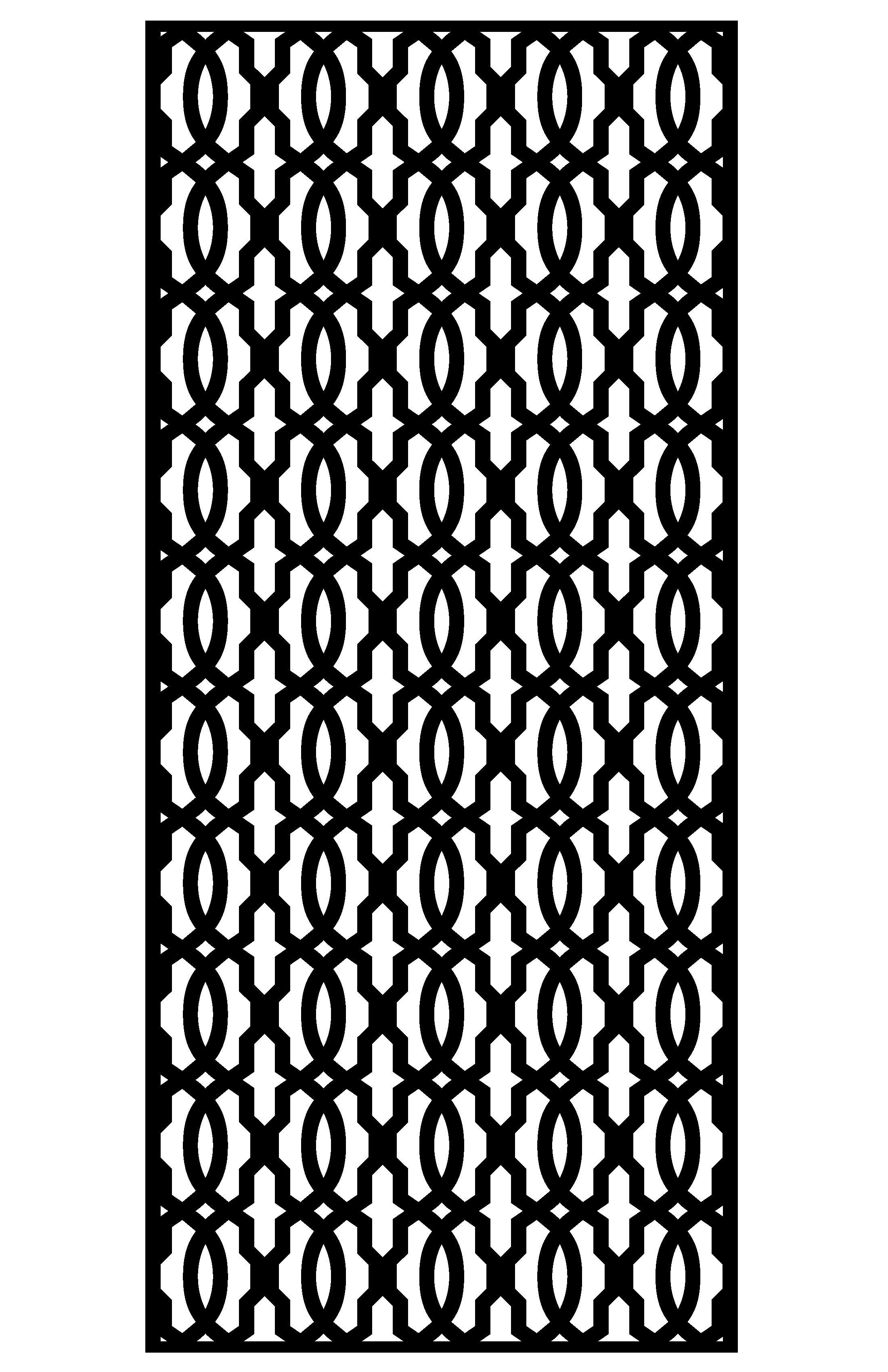

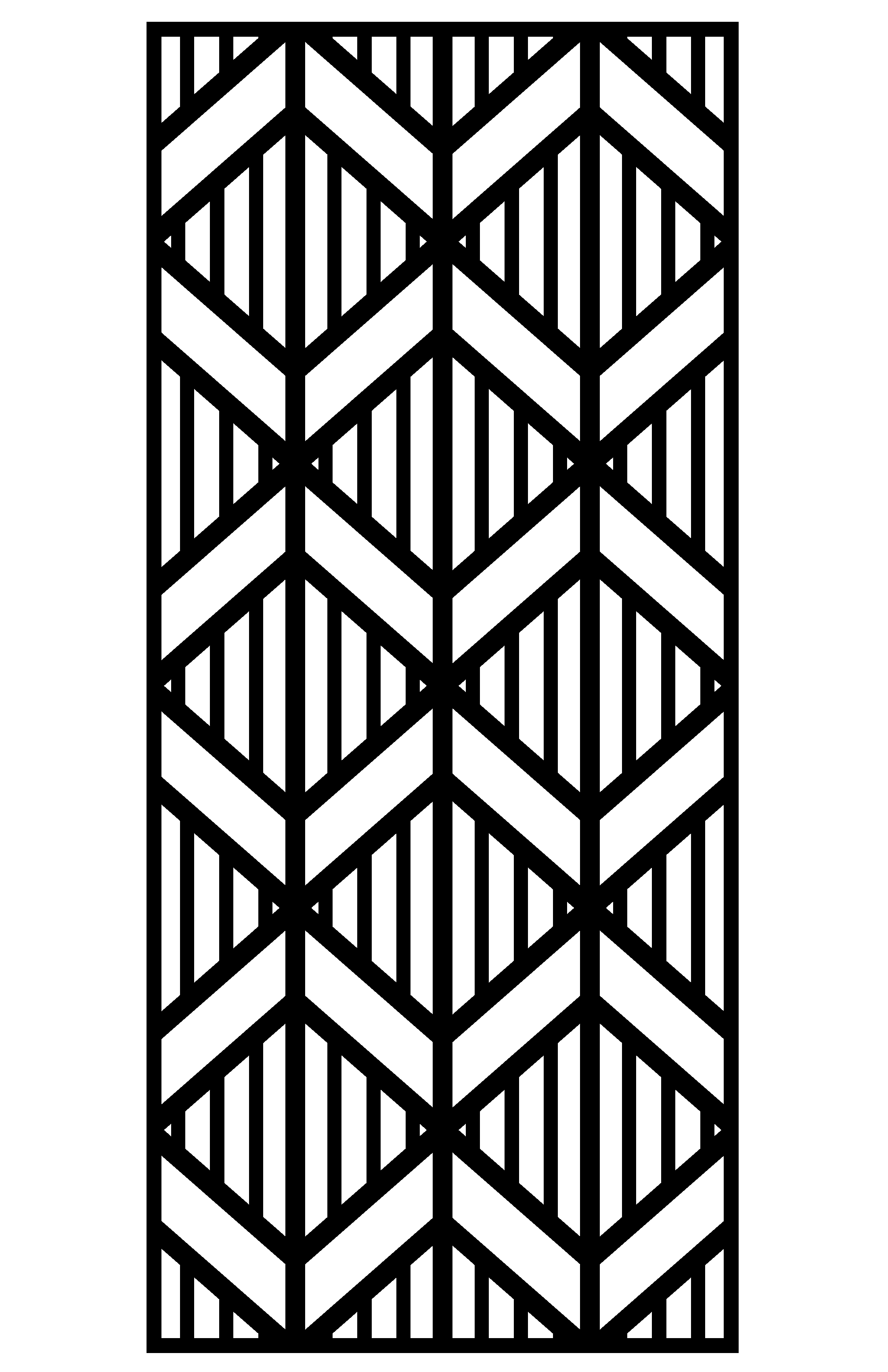

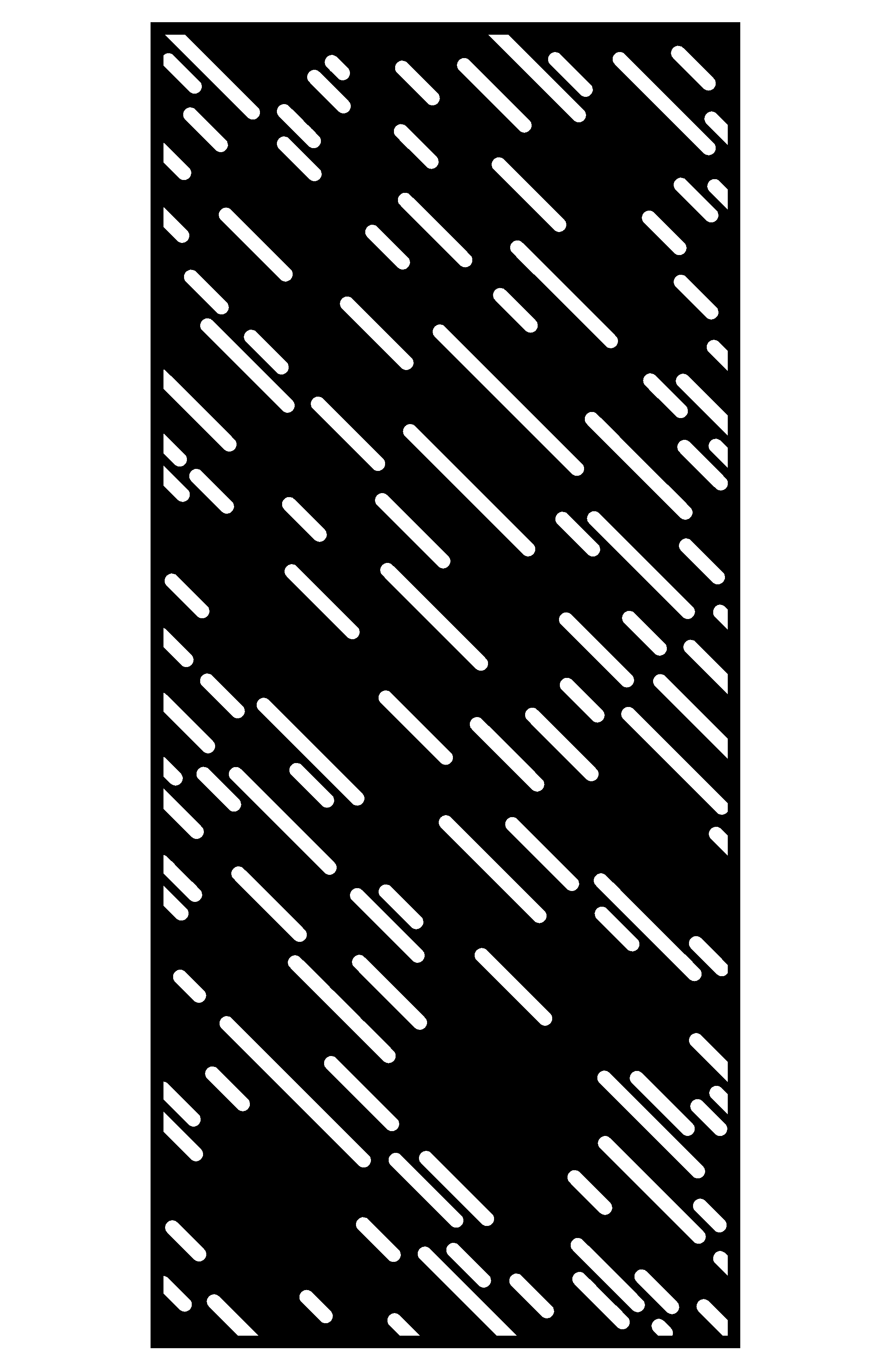

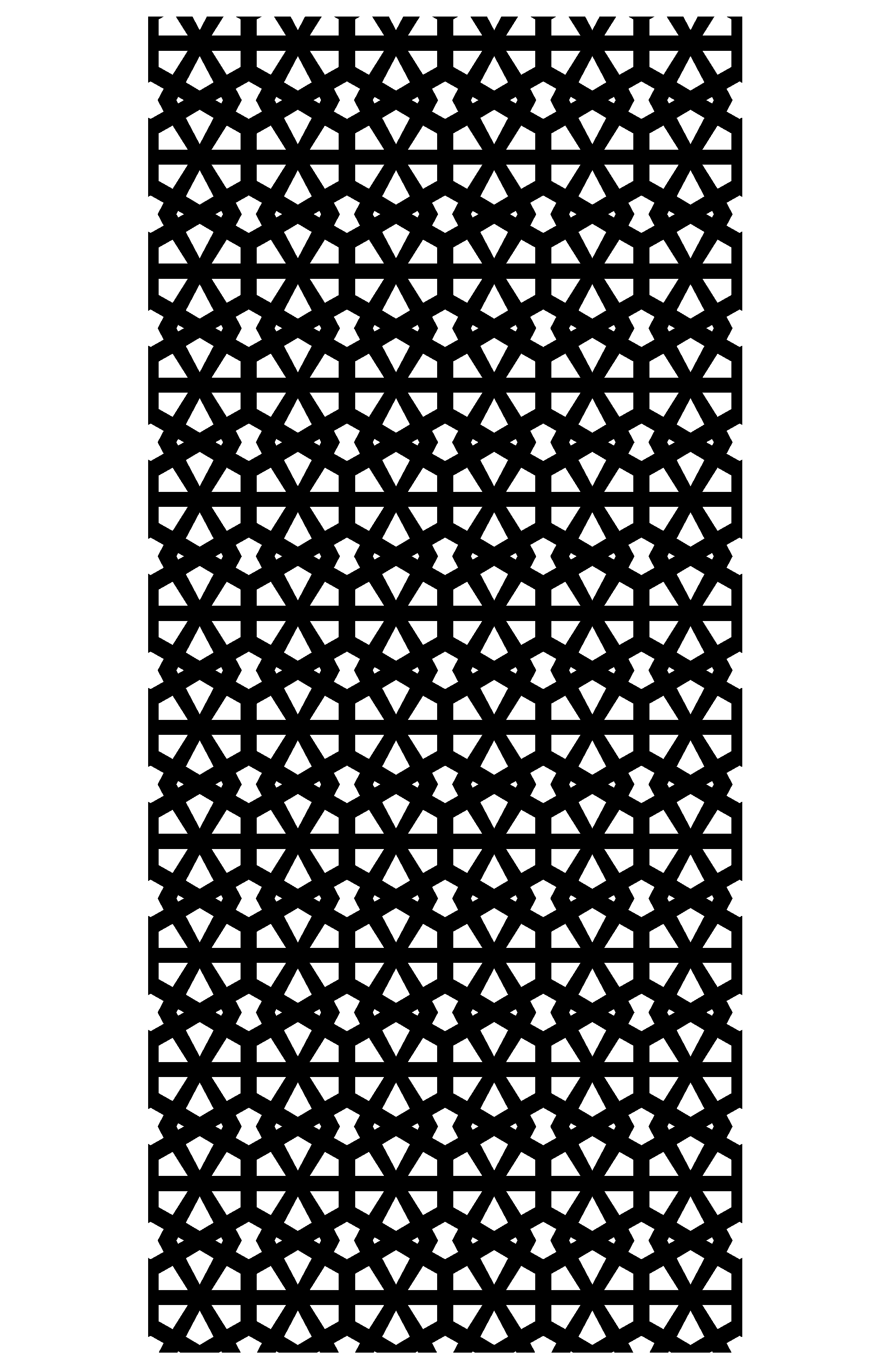

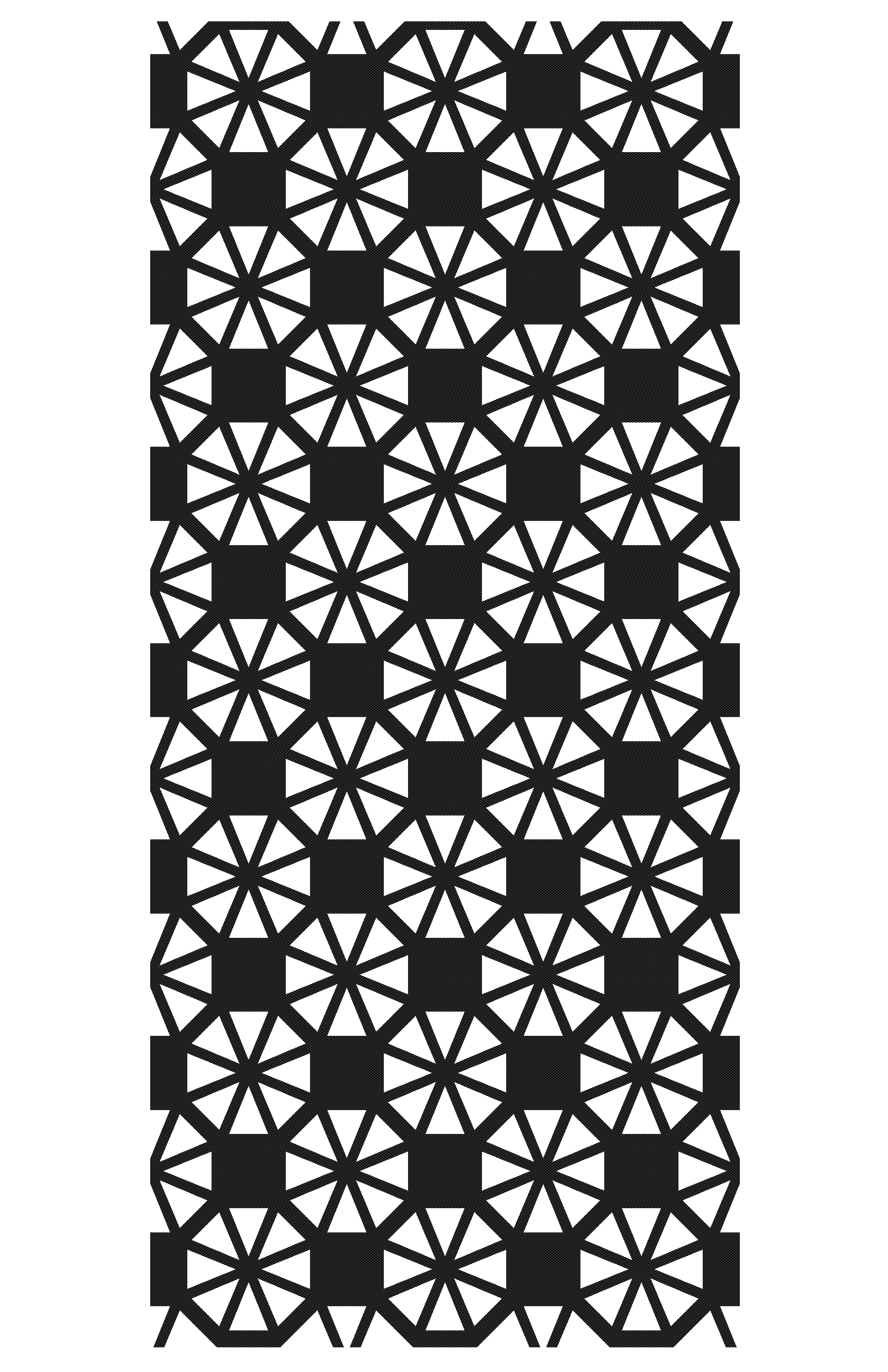

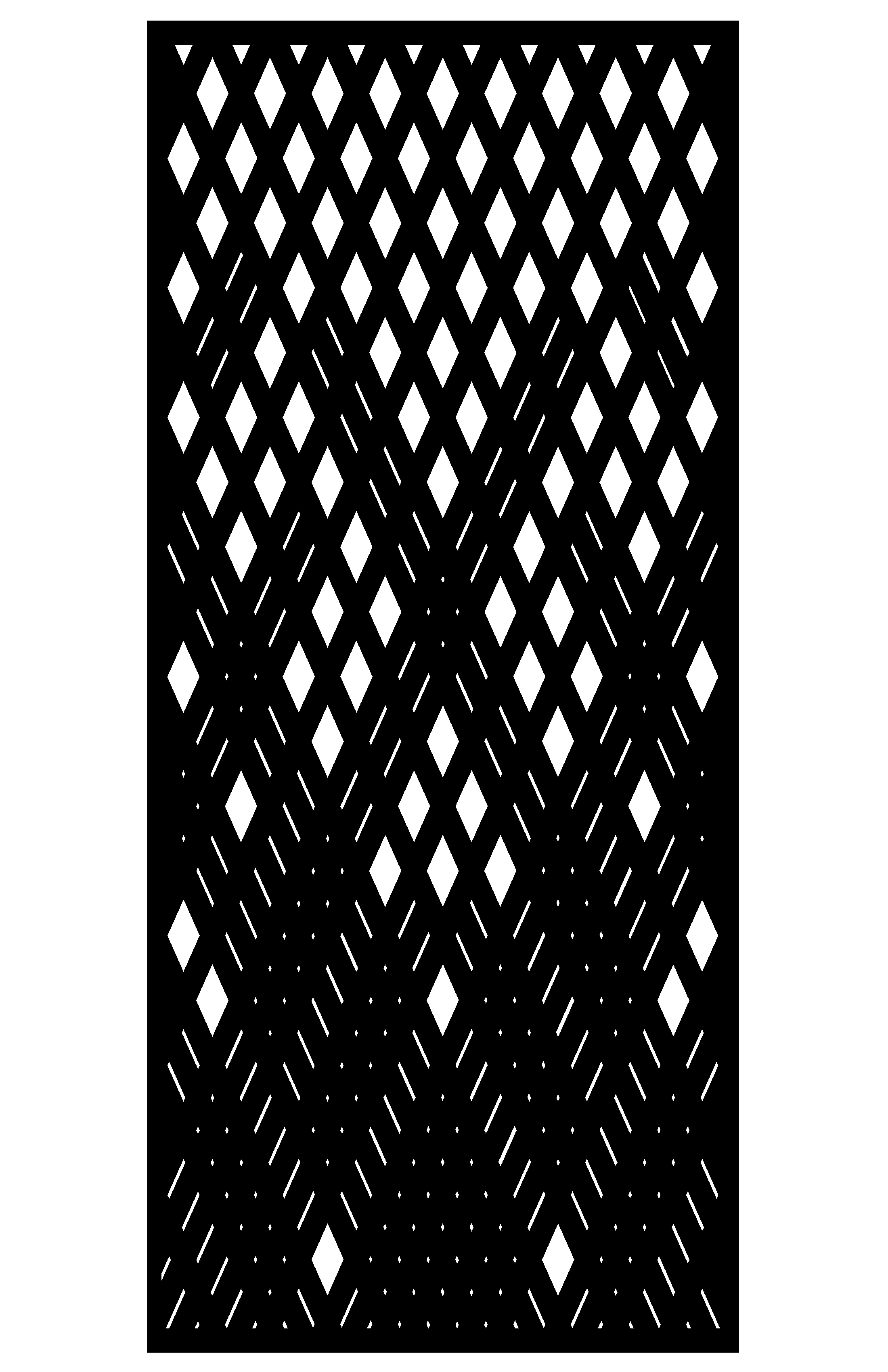

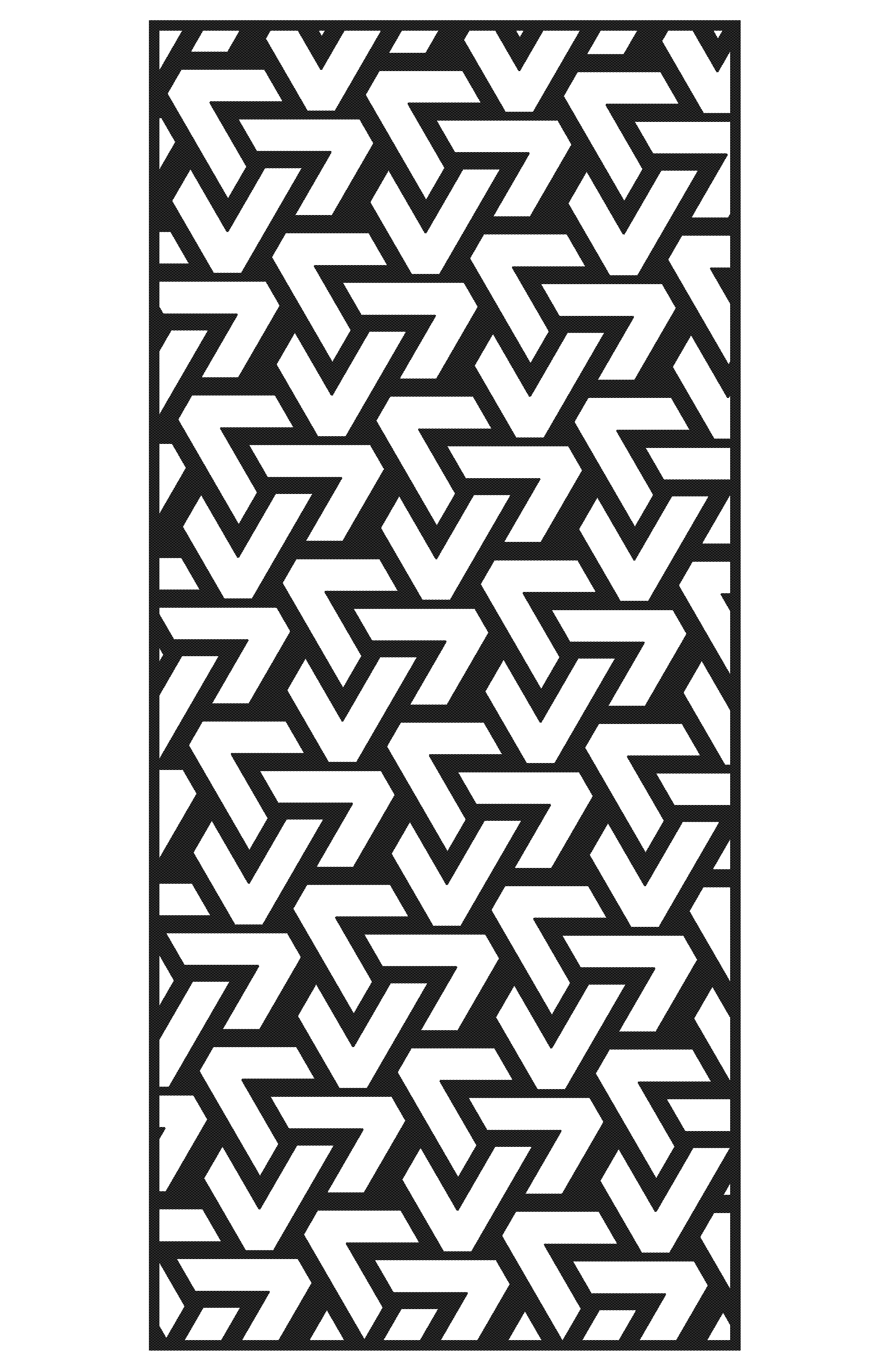

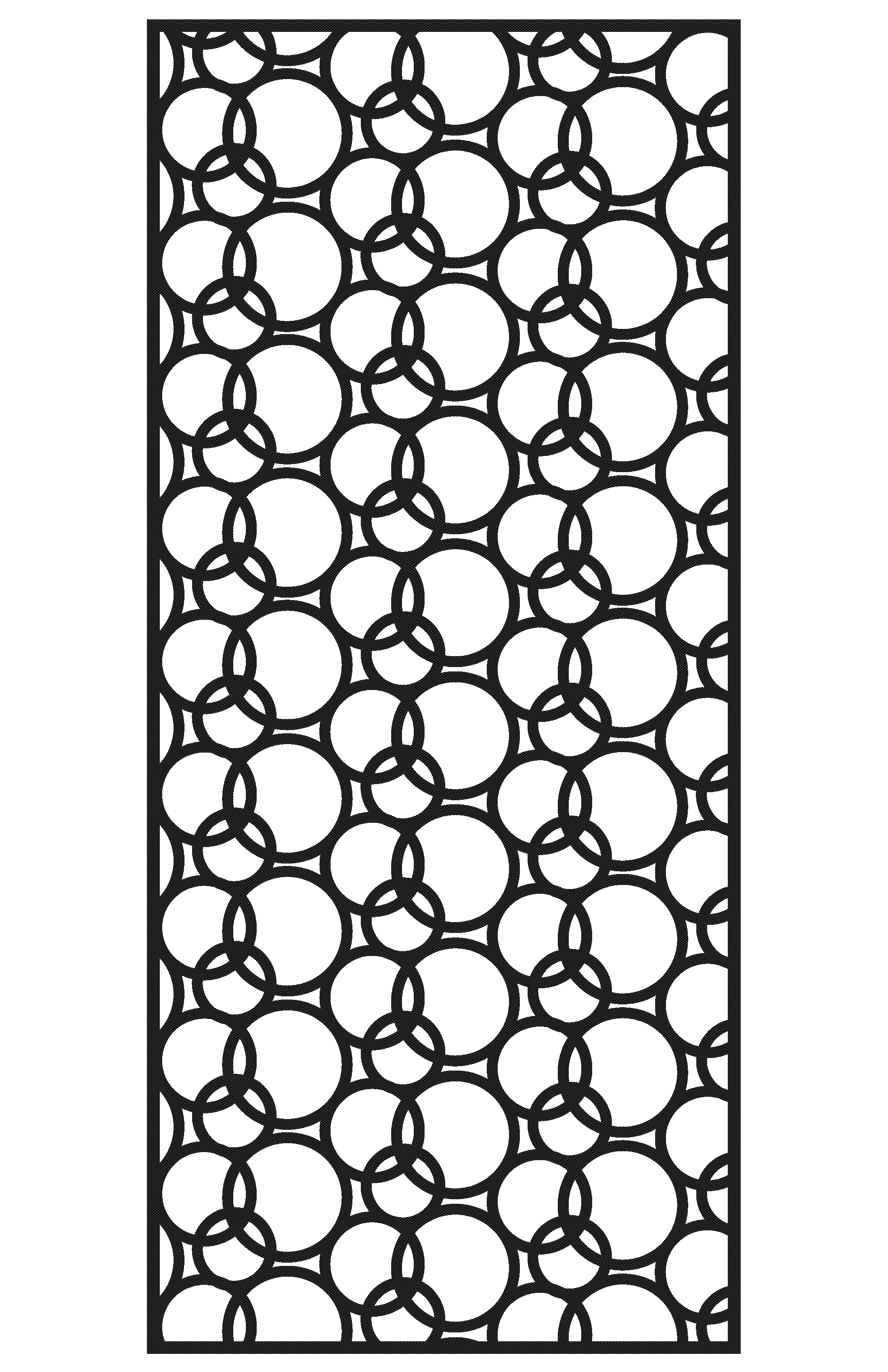

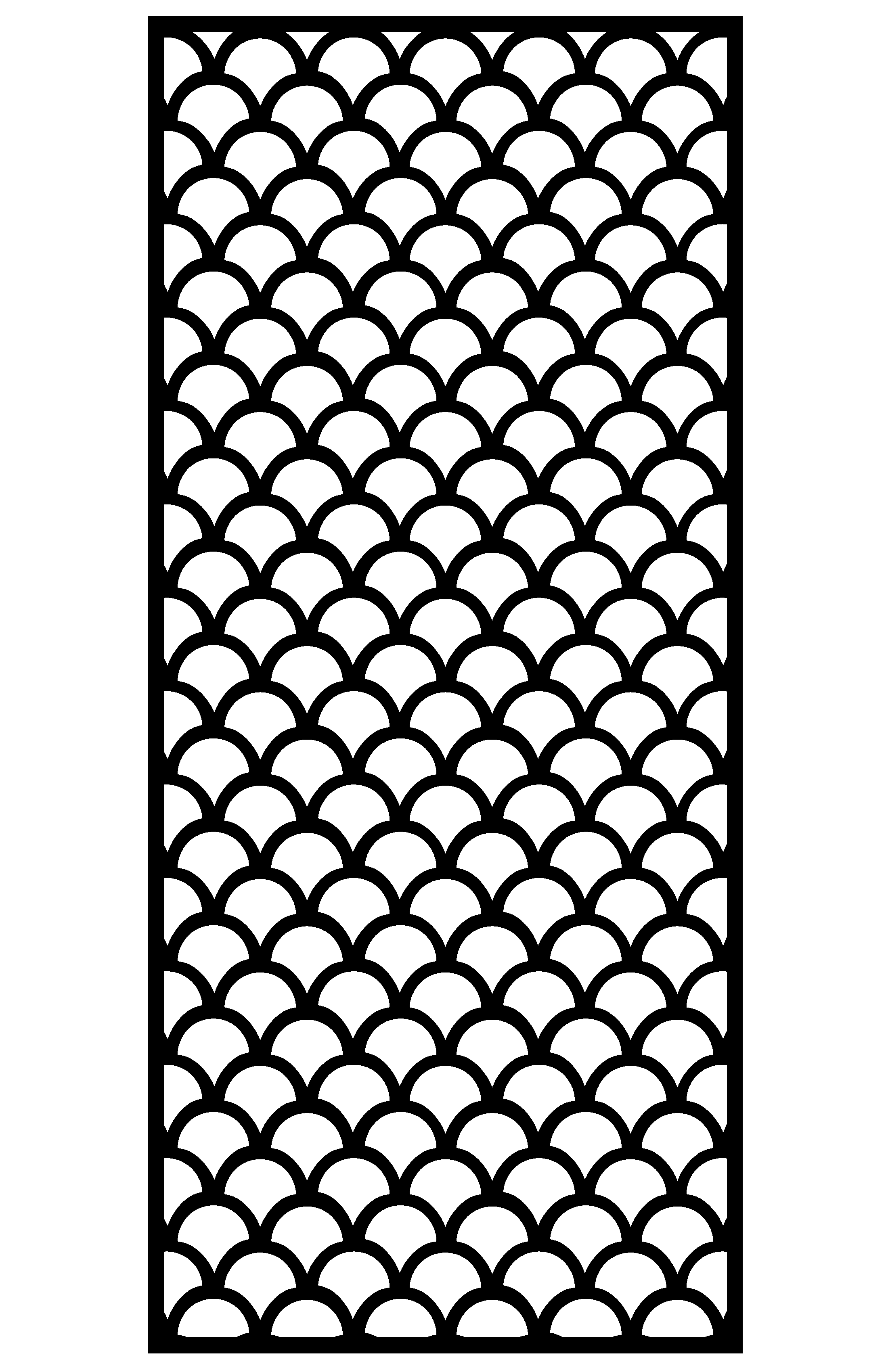

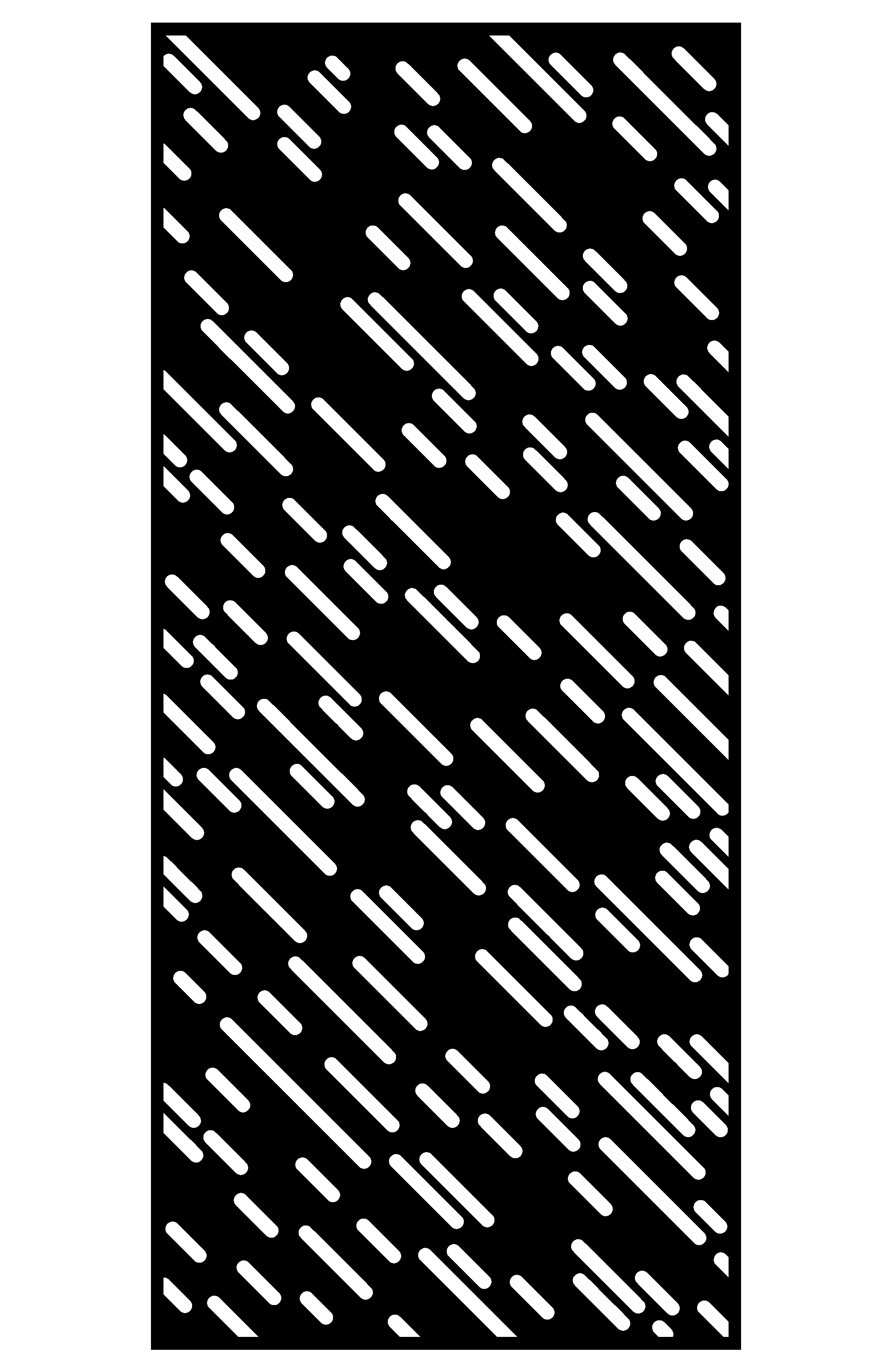

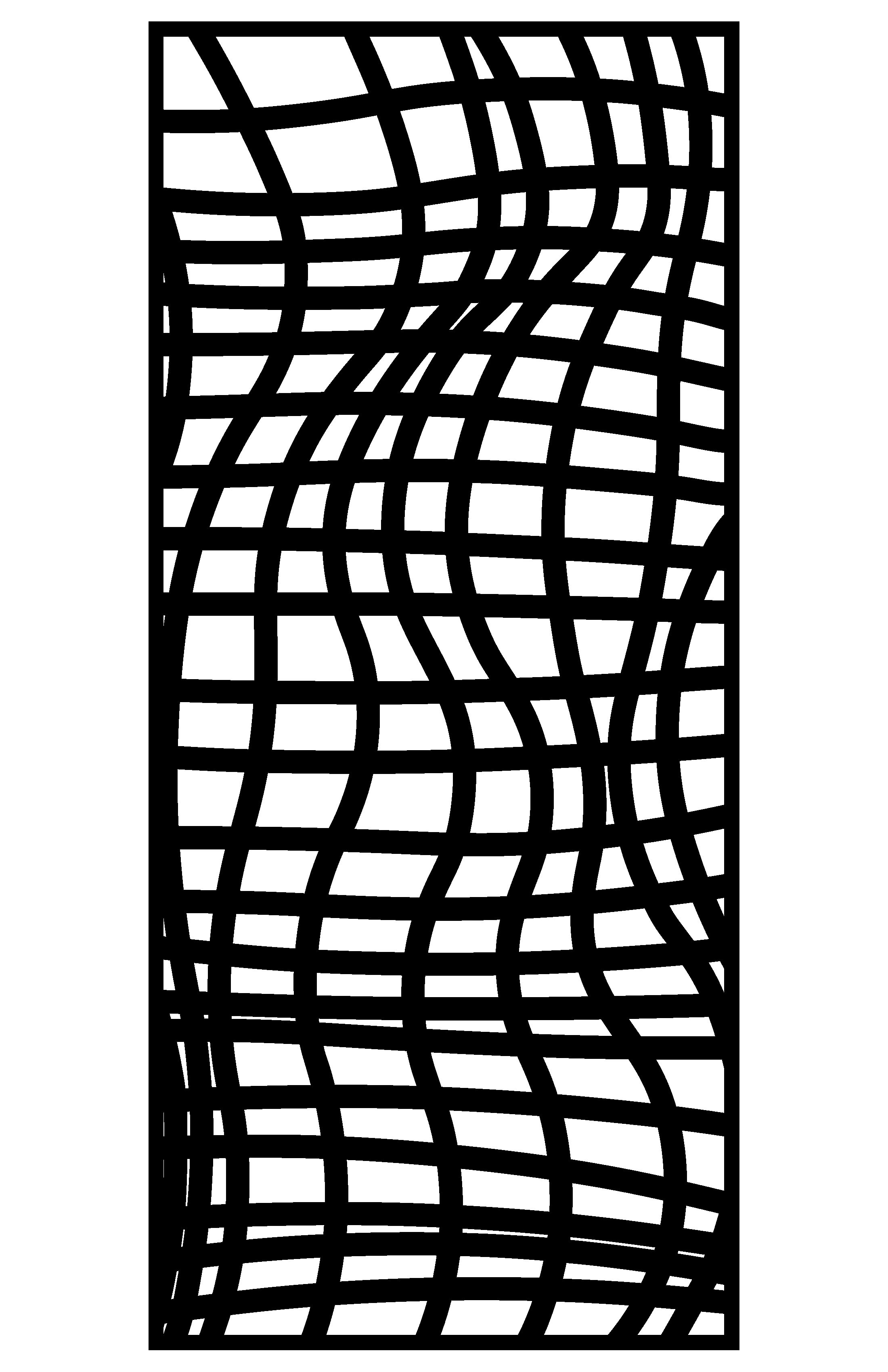

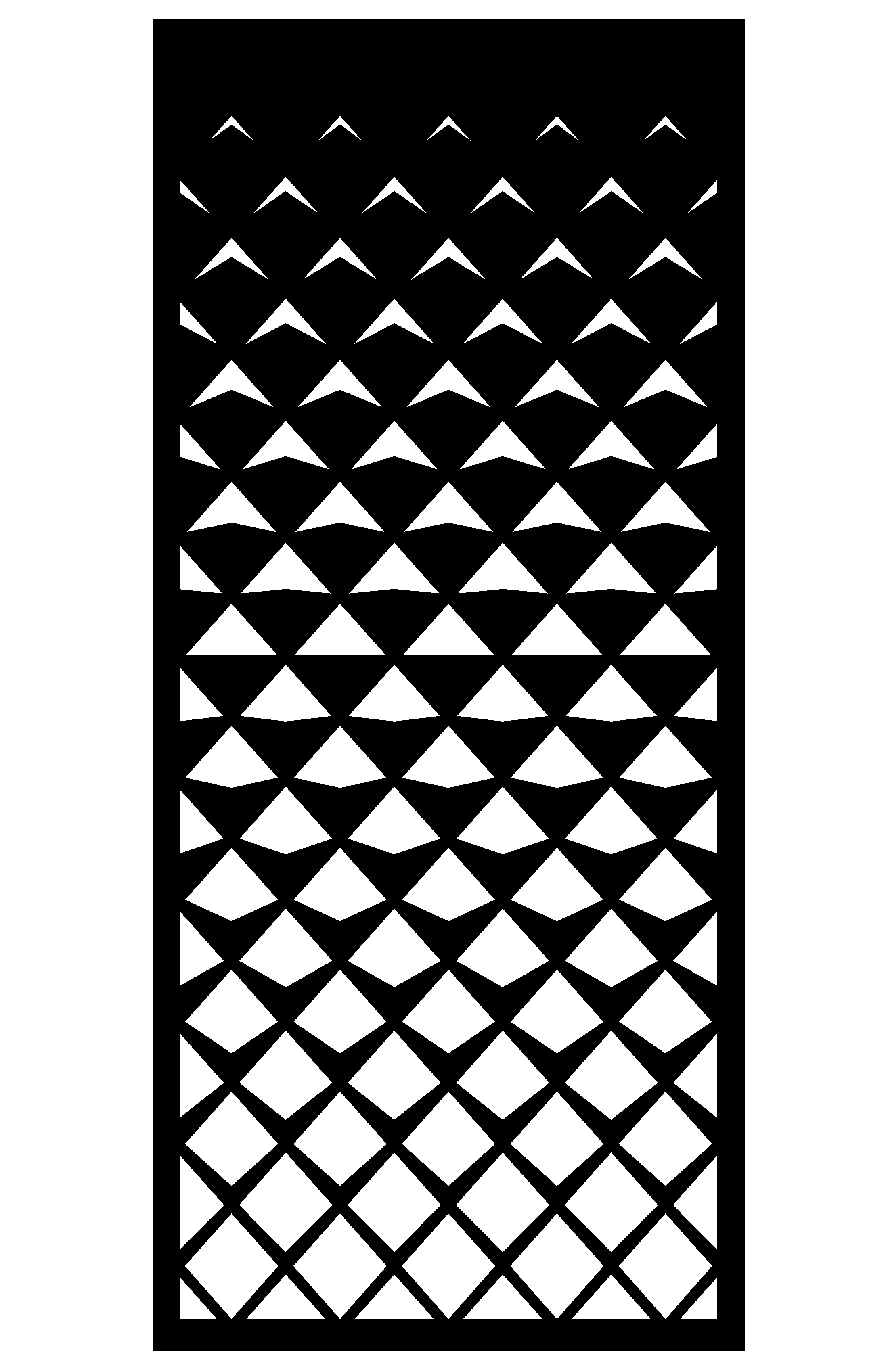

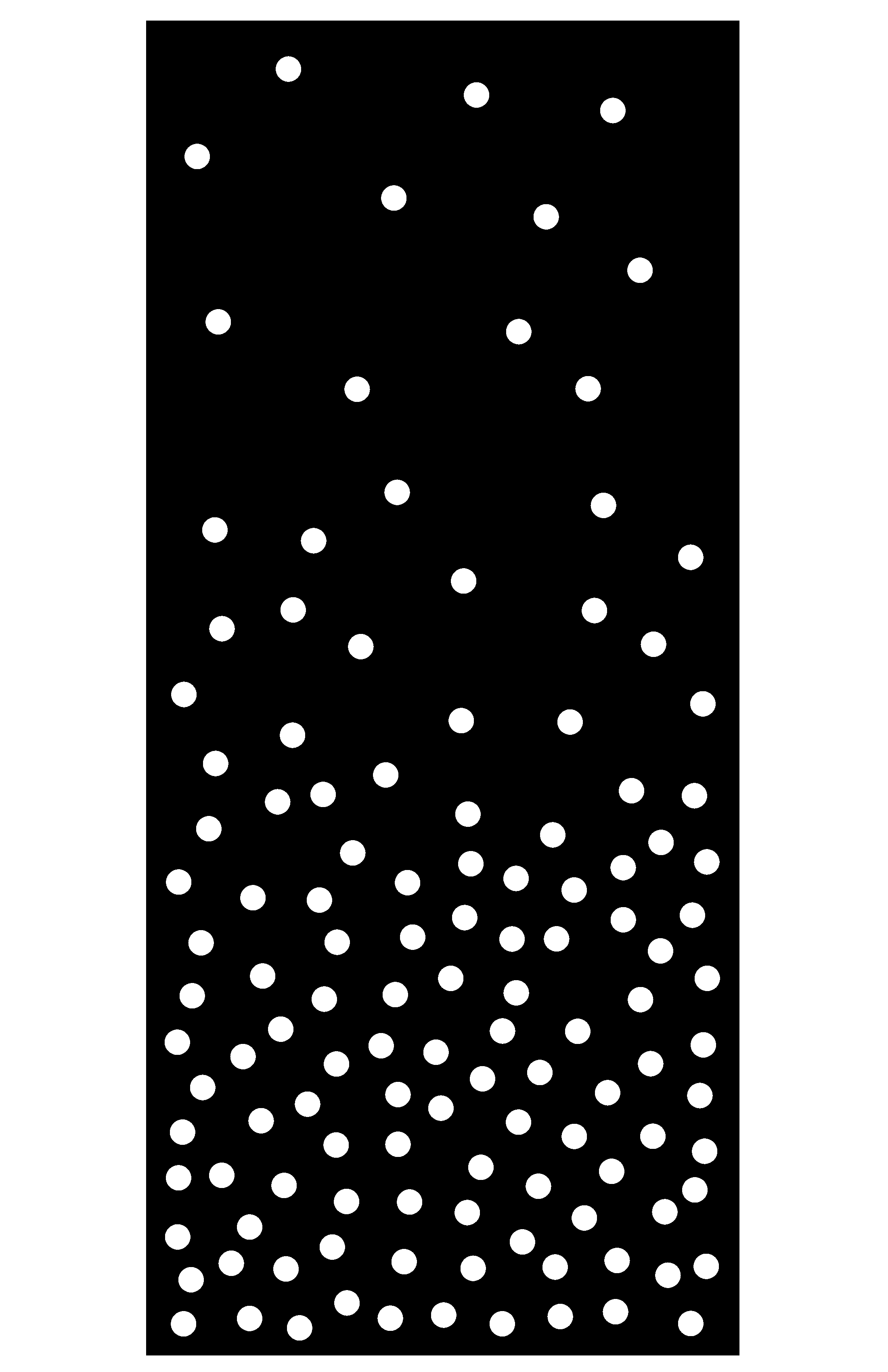

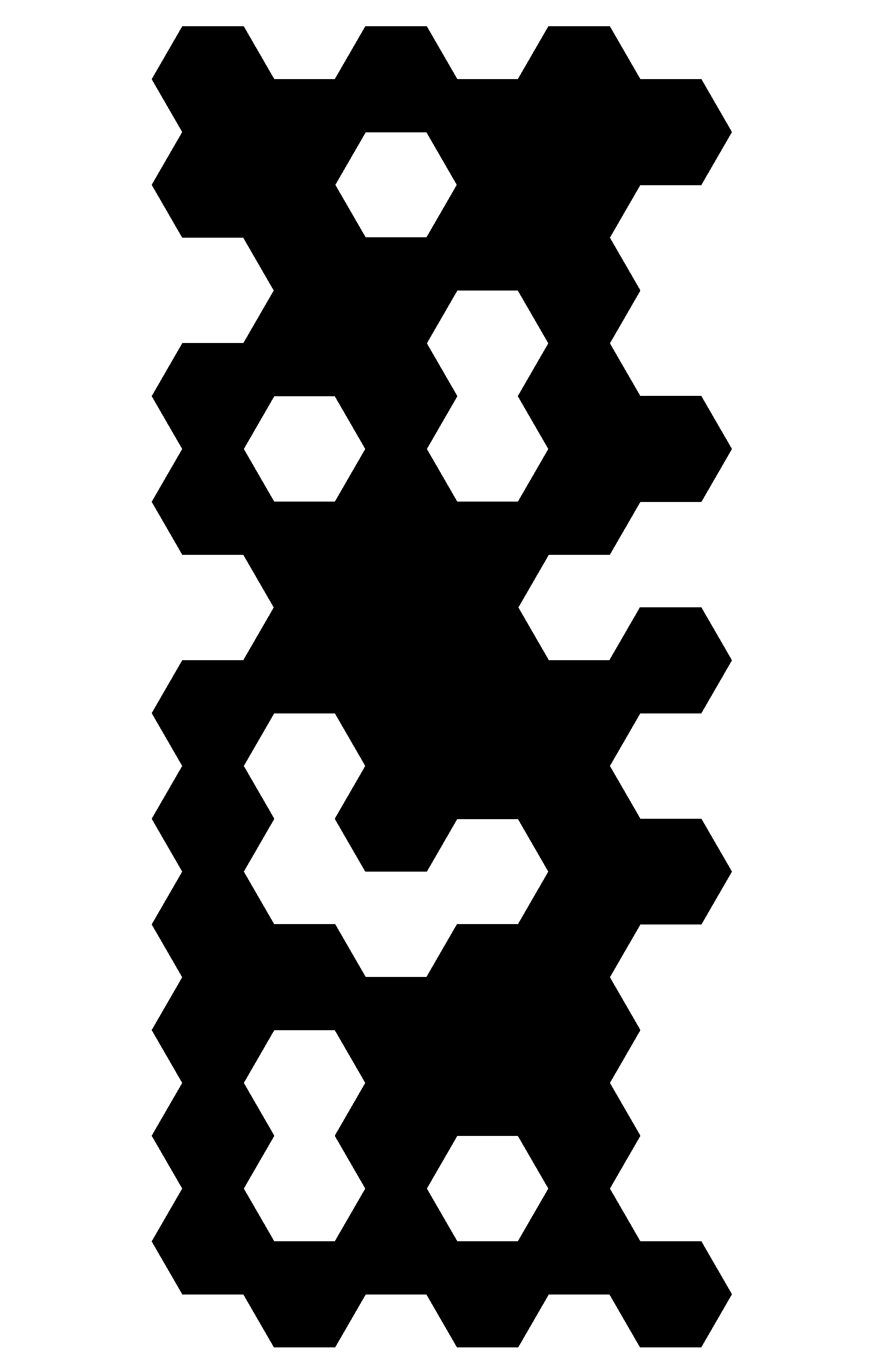

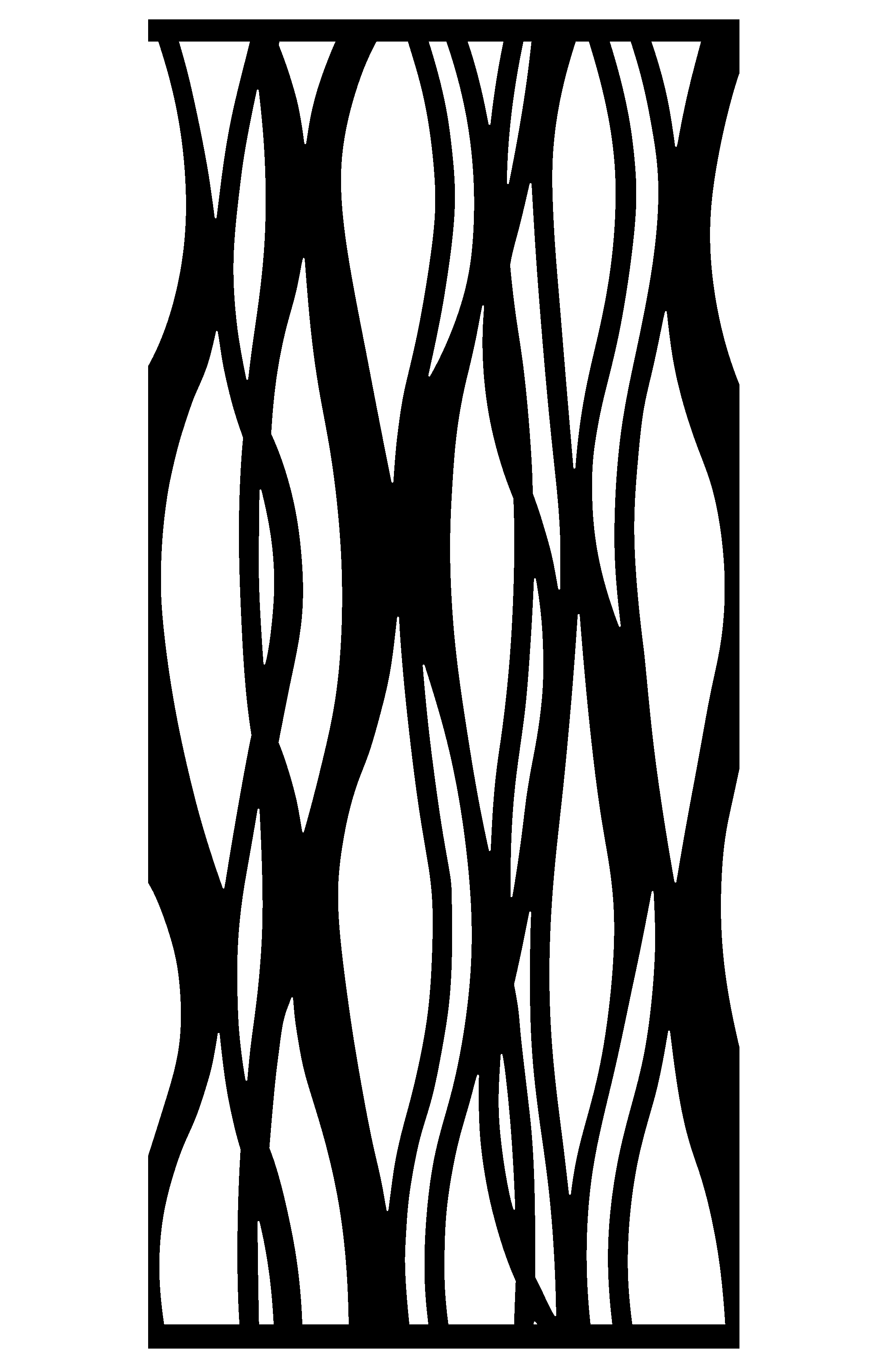

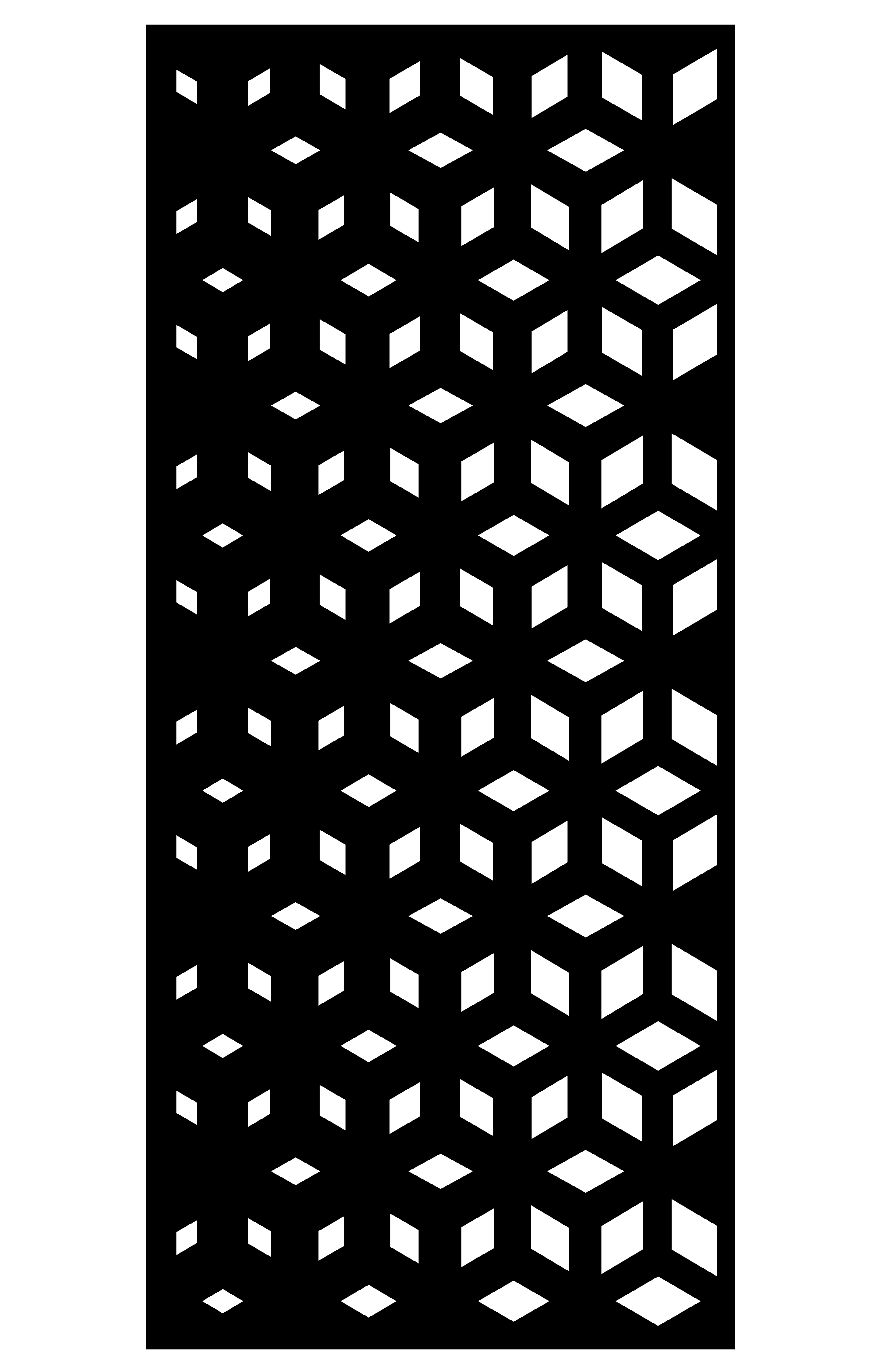

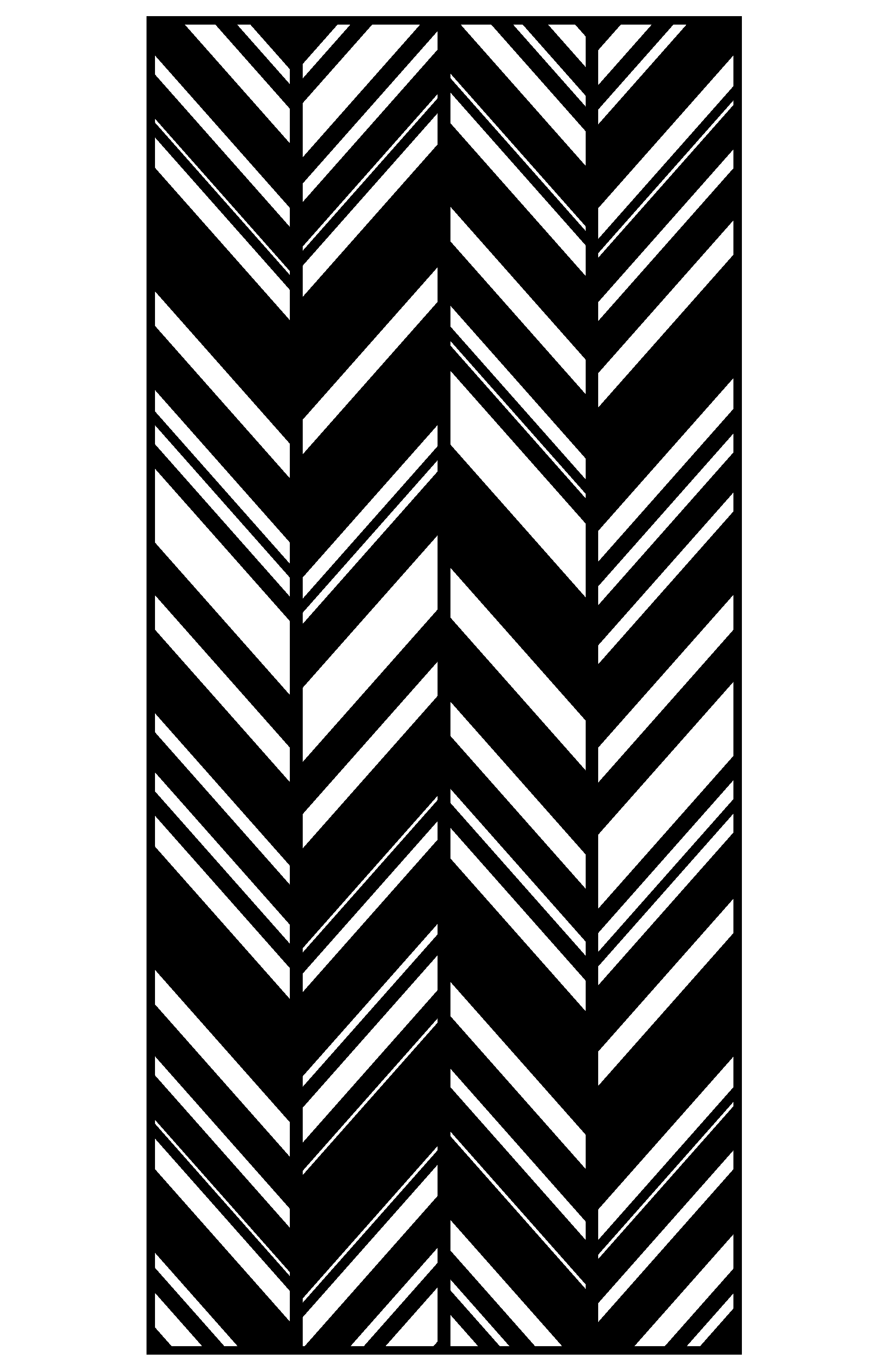

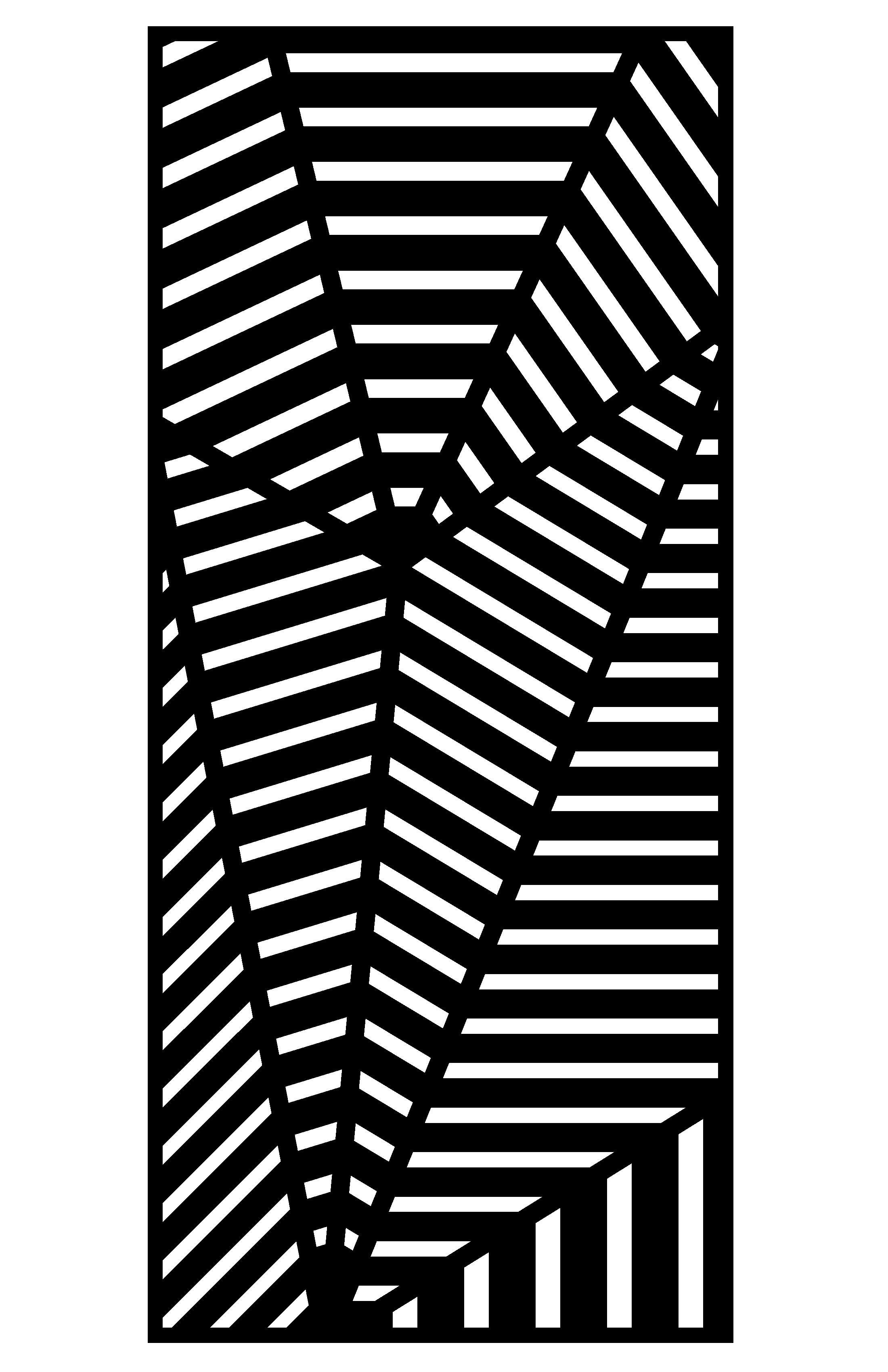

Standard Screen Designs
