Shadow Baffle

$0.00

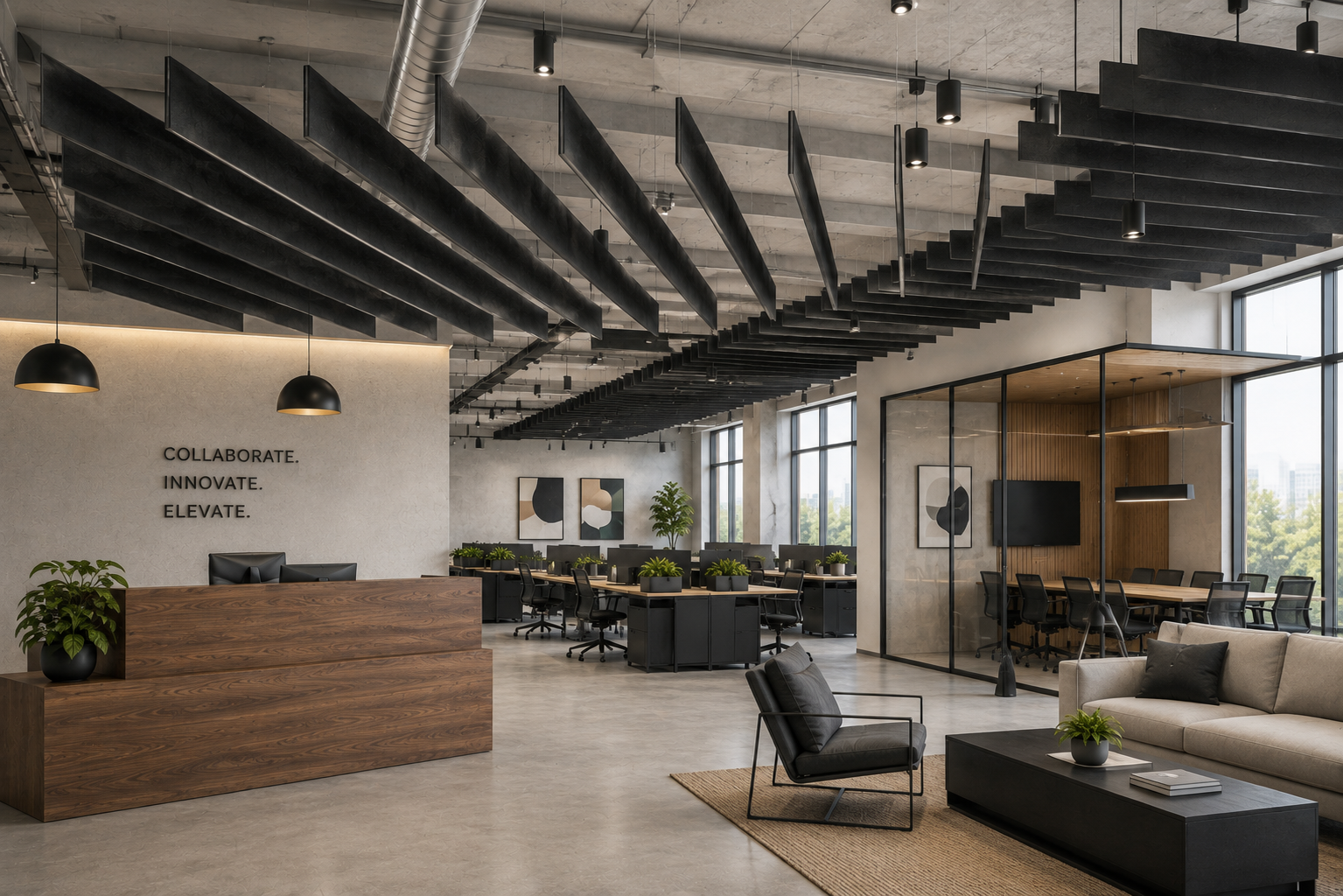

Shadow Baffles bring depth, dimension, and acoustic performance overhead. Designed to create striking linear ceiling installations, these suspended acoustic baffles help manage unwanted sound while adding a bold architectural element to commercial interiors. Arrange them in clean, uniform rows or create custom configurations to complement the scale and character of the space.

Shadow Baffles bring depth, dimension, and acoustic performance overhead. Designed to create striking linear ceiling installations, these suspended acoustic baffles help manage unwanted sound while adding a bold architectural element to commercial interiors. Arrange them in clean, uniform rows or create custom configurations to complement the scale and character of the space.

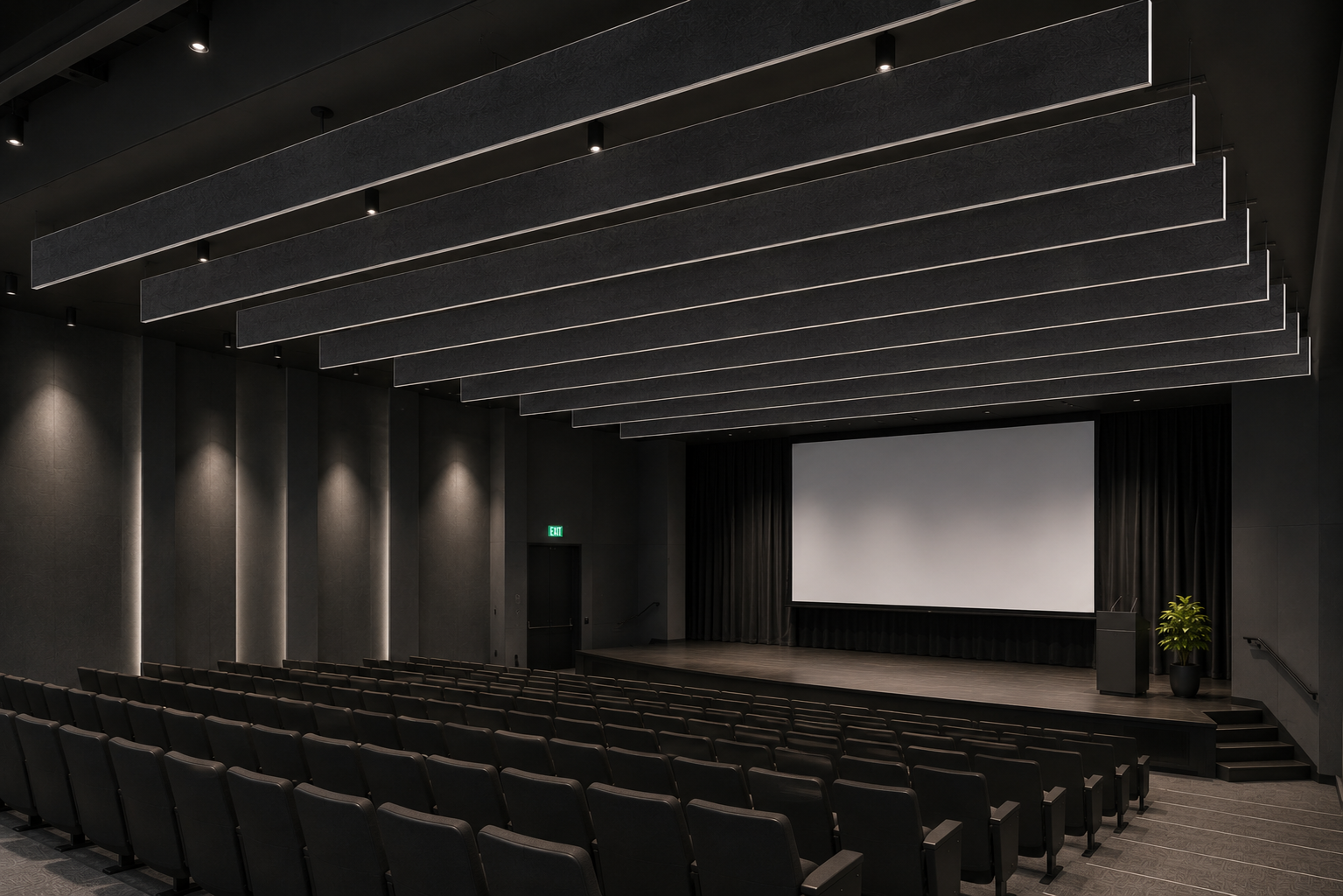

Shadow Baffle Auditorium.png

Specifications

Material

American-Made EcoCore 100% Polyester (55% PET-Recycled Fiber, 45% PET-Virgin Fiber)

Blade Baffle Sizes
Height: 4" - 22" max, *standard height: 11.25"

Length: 12 - 119" max

Custom sizes available.

Construction

American-Made EcoCore 100% Polyester (55% PET-Recycled Fiber, 45% PET-Virgin Fiber)

Can be made two different ways:

1” Folded baffle with V-notch

1.5” Folded baffle with one color on the outside and different color in the center. Each baffle’s beveled interior edge can add some color to your ceiling.

Manufactured from 1/2" (12.5mm) 11 PCF American-Made EcoCore®, the Shadow baffle utilizes a three-layer construction consisting of a contrasting center core and matching or complementary outer face panels. A continuous reveal along the exposed edge showcases the inner core color, creating a refined visual accent and emphasizing the baffle's slim, floating profile.

*Can be made from ECC EcoCore Colors in 1/2" thickness upon request.

Sustainability

Certifications:
MAS Certified Green
LEED v4.1 ID+C, BD+C
CHPS 2019 Core Criteria 3.0 EQ C6.1.6

Finish

Mounting Method
Panels are supplied with swivel gripper with aircraft cable for attachment/suspension.

*Additional suspension systems are available upon request.

Performance

Fire Rating

  • All panel components meet or exceed class “A” requirements as determined by ASTM E-84 tunnel test.

Acoustical Performance

  • NRC Rating ASTM C423
    Type J Mount
    0.5” EcoCore: 0.55
    1” EcoCore: 0.75
    2” EcoCore: *estimated 1.1

Warranty: All American-Made EcoCore products are warranted against workmanship and manufacturing defects for five (5) years from the date of purchase.
