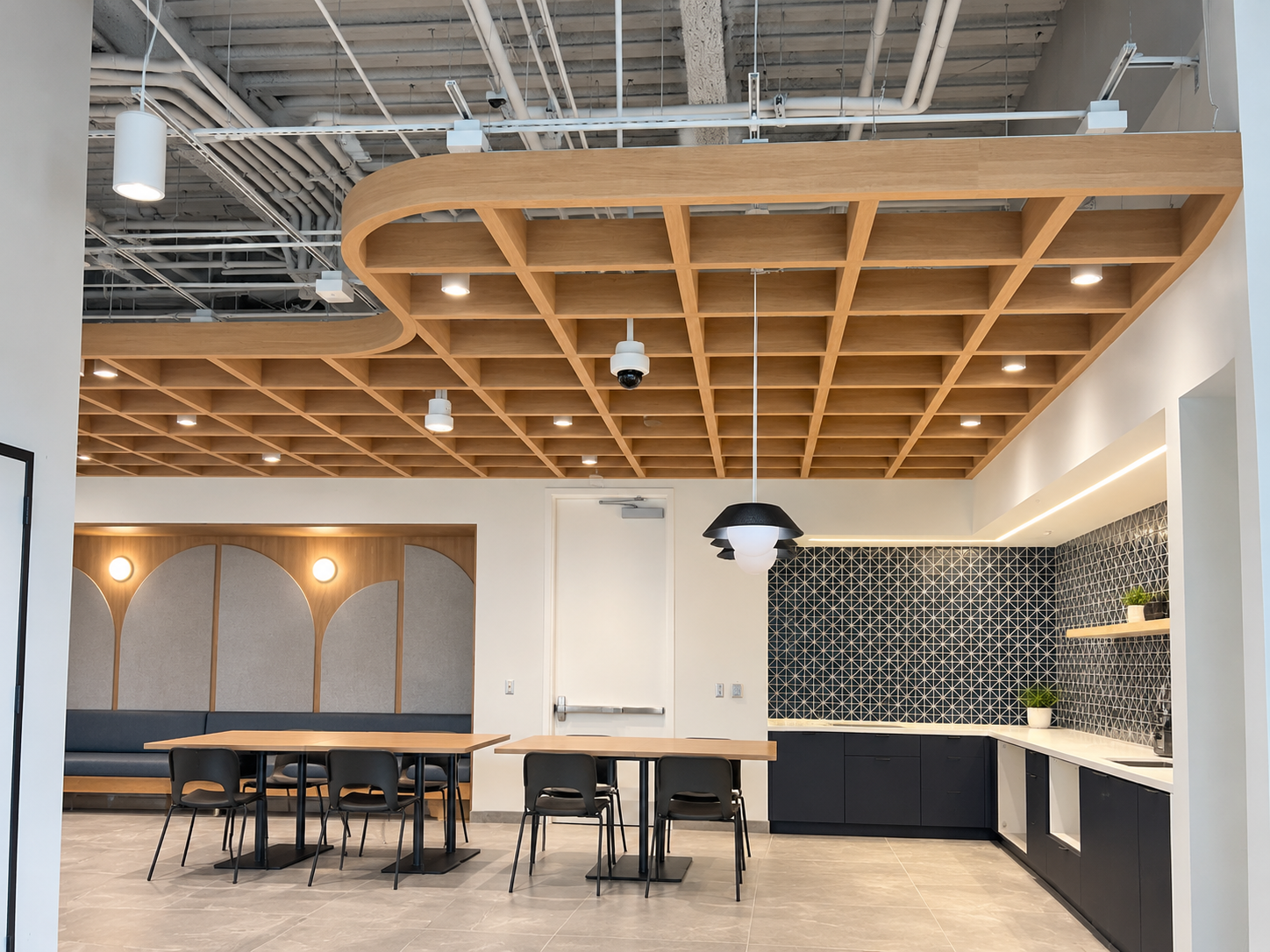

JP Morgan PET Wood Grain Cube Ceiling_CleanedUp.png
JP Morgan PET Wood Grain Cube Ceiling_CleanedUp.png

Wood Cube

$0.00

Bring the warmth and character of natural wood overhead with APS Wood Cube Ceilings. Designed to create architectural depth and visual interest, the dimensional grid system is available in a variety of wood species, including White Oak, Western Hemlock, and Walnut, with custom color options available.

Wood Cube Ceilings combine design with acoustic performance, naturally helping absorb sound while creating a distinctive ceiling feature. For projects requiring enhanced acoustics, the system can be paired with American-made EcoCore polyester panels for increased sound absorption.

Ideal for hospitality, corporate, education, retail, and other commercial interiors, Wood Cube Ceilings offer a refined way to add warmth, dimension, and acoustic functionality to a space.

Bring the warmth and character of natural wood overhead with APS Wood Cube Ceilings. Designed to create architectural depth and visual interest, the dimensional grid system is available in a variety of wood species, including White Oak, Western Hemlock, and Walnut, with custom color options available.

Wood Cube Ceilings combine design with acoustic performance, naturally helping absorb sound while creating a distinctive ceiling feature. For projects requiring enhanced acoustics, the system can be paired with American-made EcoCore polyester panels for increased sound absorption.

Ideal for hospitality, corporate, education, retail, and other commercial interiors, Wood Cube Ceilings offer a refined way to add warmth, dimension, and acoustic functionality to a space.

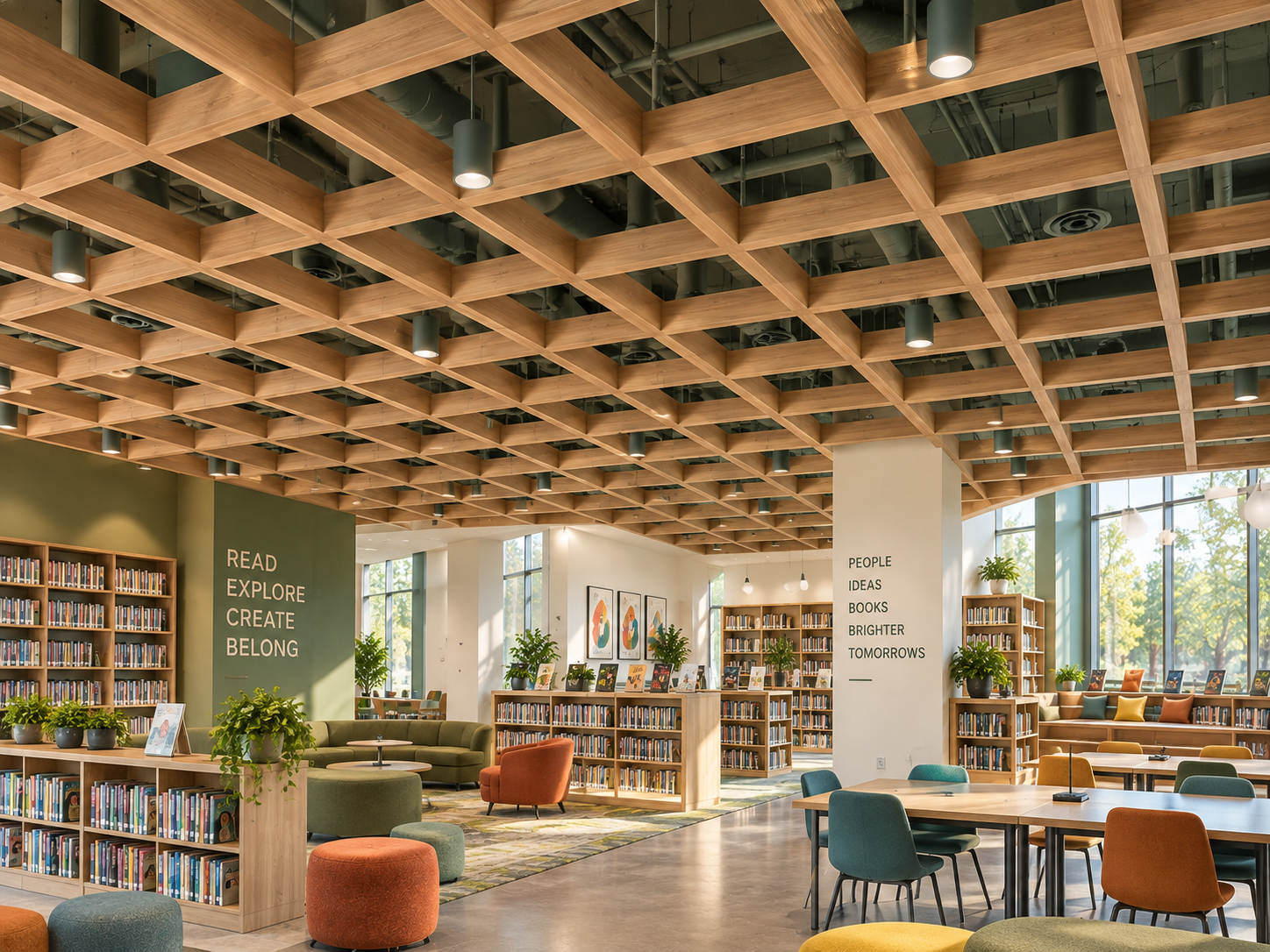

APS Wood Cube_Hemlock.png

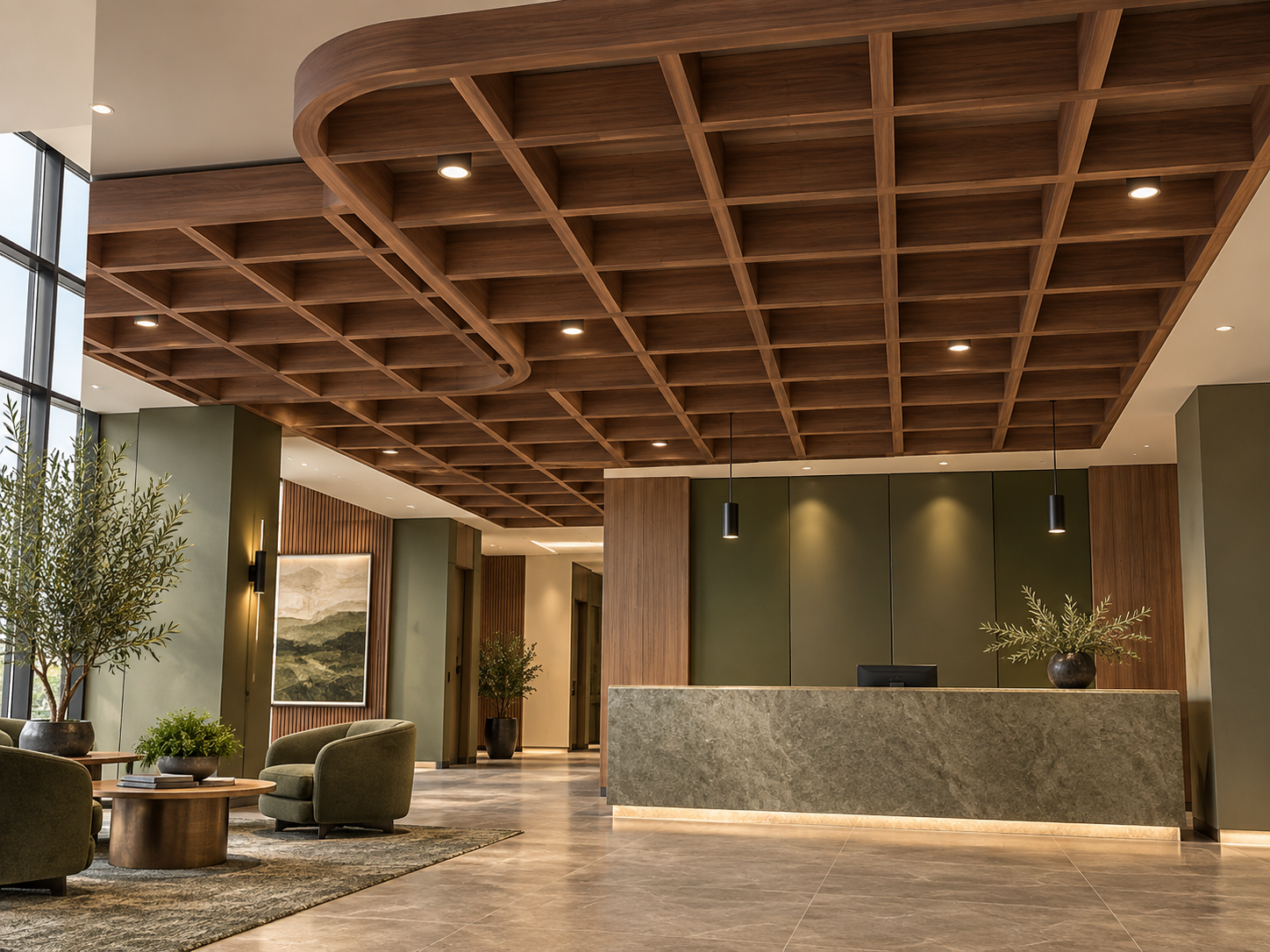

Walnut Wood Cube_APS_Lobby.png

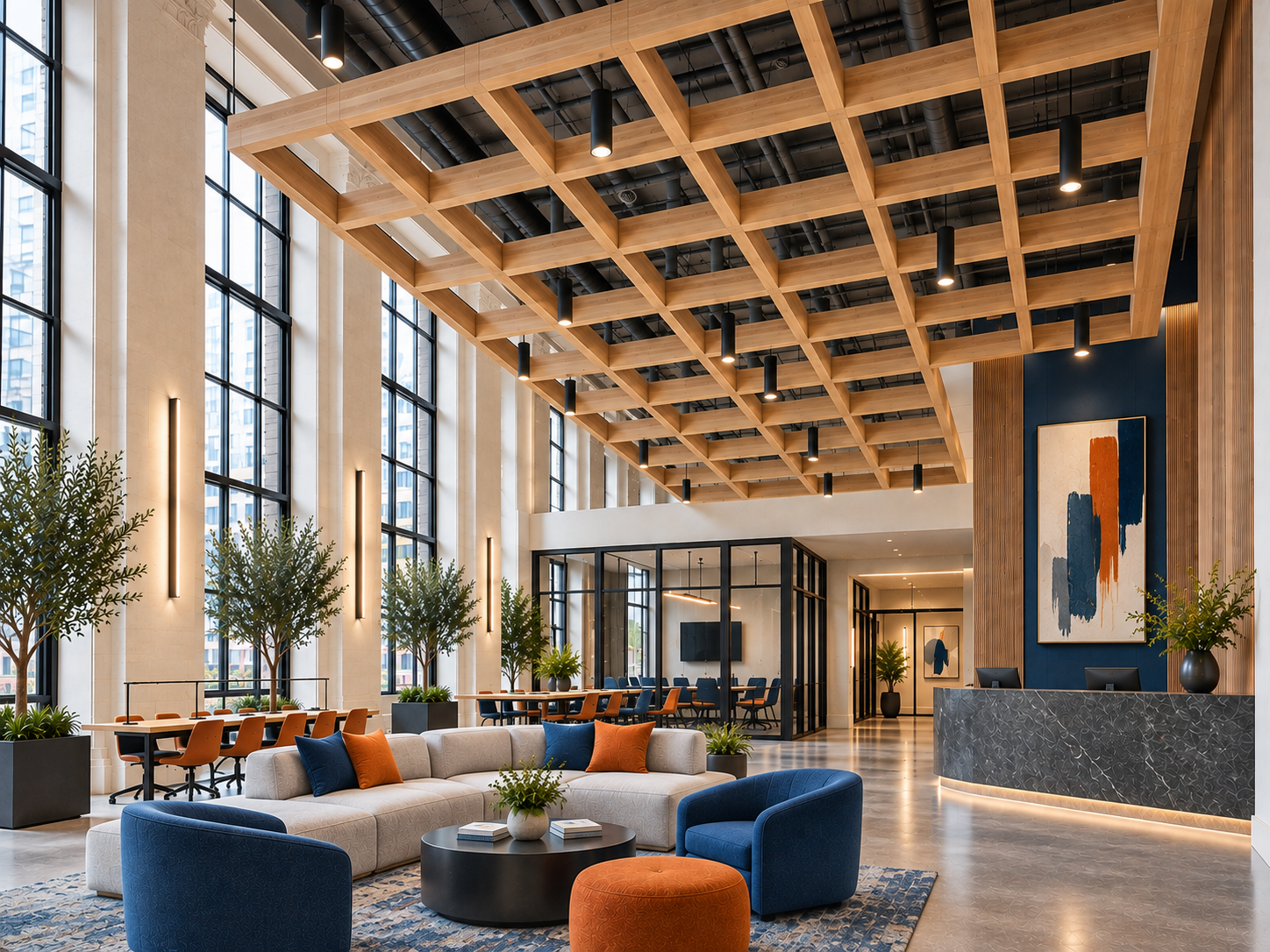

Hotel Lobby Area_APS Wood Cube.png

Specifications

Standard Sizes
Standard Sizes: 24”

Cube Profile: 3 1/4" and 5 1/4" H x 1 3/8" thick
*Custom sizes available.

Finish

Clear Satin Sheen

*Custom color options available per request.

Composition

Cubes are manufactured in a variety of wood species to meet each project specification. i.e. White Oak, Western Hemlock, Walnut.

MDF core with wood veneer offers a consistent appearance with added stability.

Mounting Method

  • Cubes can be mounted to a heavy duty T-Bar suspended structure. A slot on top is made to accept the T-bar frame and secured by screws.

  • Cubes can also be secured with eye bolts and wire.

Fire Rating

  • All panel components meet or exceed class “A” requirements as determined by ASTM E-84 tunnel test.

Performance

Fire rated coatings can be applied to meet Class A Specs

Acoustics

Wood Cube Ceilings naturally absorb sound, and their acoustic performance can be enhanced when paired with our American-made EcoCore Polyester panels.

Acoustical Performance

NRC Rating ASTM C423

(Mounting Method Type A)

Material: 0.5” EcoCore: 0.45

Material: 1” EcoCore: 0.80

Material: 2” EcoCore: 1.10

(Mounting Method Type F25)

Material: 0.5” EcoCore: 0.65

Material: 1” EcoCore: 0.90

Material: 2” EcoCore: *estimated over 1.1

Acclimatization

APS's Wood Cubed must be installed in a controlled interior environment with a relative humidity of 25%-55% and a temperature range of 60°F-80°F.

Seismic

Wood Cube Ceilings generally require additional securing for safety when installed overhead. Common methods include safety wire tie-offs or lock-down screws. Please consult local building codes or a licensed engineer for guidance.

Sustainability

Wood:

  • FSC Certified

American Made EcoCore Certifications:

  • MAS Certified Green

  • LEED v4.1 ID+C, BD+C

  • CHPS 2019 Core Criteria 3.0 EQ C6.1.6

Country of Origin

• Made in the USA

Warranty

All products are warranted against workmanship and manufacturing defects for five (5) years from date of purchase.
